#include <bwf_base.h>

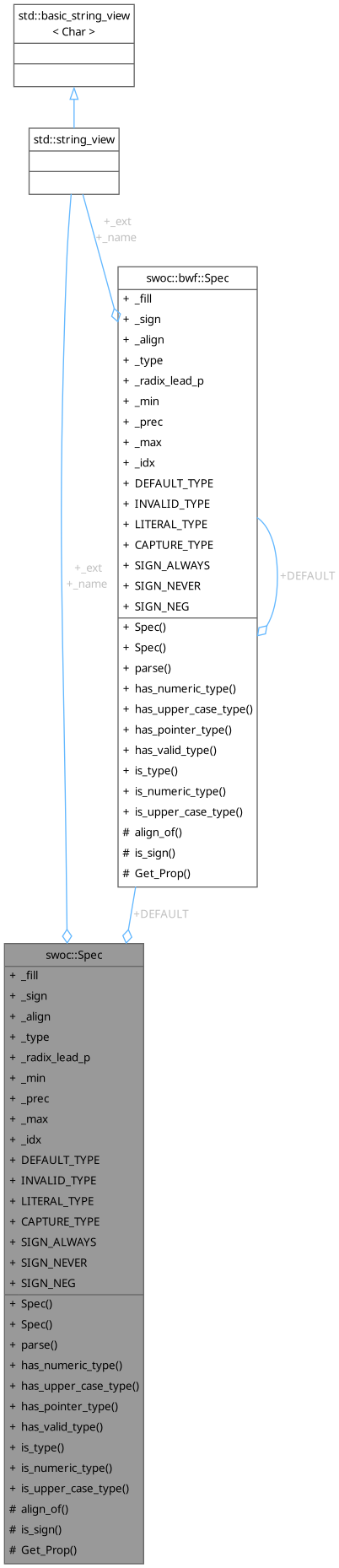

Collaboration diagram for swoc::Spec:

Classes
struct	Property
	Handrolled initialization the character syntactic property data. More...

Public Types
enum class	Align : char { NONE , LEFT , RIGHT , CENTER , SIGN }
	Flag for how to align the output inside a limited width field. More...

using	self_type = Spec
	Self reference type.

Public Member Functions
constexpr	Spec ()
	Constructor a default instance.

	Spec (const TextView &fmt)
	Construct by parsing fmt.

bool	parse (TextView fmt)
	Parse a format specification.

bool	has_numeric_type () const
	Check if the type in this is numeric.

bool	has_upper_case_type () const
	Check if the type in this is an upper case variant.

bool	has_pointer_type () const
	Check if the type is a raw pointer.

bool	has_valid_type () const
	Check if the type is valid.

Static Public Member Functions
static bool	is_type (char c)
	Validate c is a specifier type indicator.

static bool	is_numeric_type (char c)
	Check if the type flag is numeric.

static bool	is_upper_case_type (char c)
	Check if the type is an upper case variant.

Public Attributes
char	_fill = ' '
	Fill character.

char	_sign = SIGN_NEG

enum swoc::bwf::Spec::Align	_align = Align::NONE
	Output field alignment.

char	_type = DEFAULT_TYPE
	Type / radix indicator.

bool	_radix_lead_p = false
	Print leading radix indication.

unsigned int	_min = 0
	Minimum width.

int	_prec = -1
	Precision.

unsigned int	_max = std::numeric_limits<unsigned int>::max()
	Maximum width.

int	_idx = -1
	Positional "name" of the specification.

std::string_view	_name
	Name of the specification.

std::string_view	_ext
	Extension if provided.

Static Public Attributes
static constexpr char	DEFAULT_TYPE = 'g'
	Default format type.

static constexpr char	INVALID_TYPE = 0
	Type for missing or invalid specifier.

static constexpr char	LITERAL_TYPE = '"'
	Internal type to mark a literal.

static constexpr char	CAPTURE_TYPE = 1
	Internal type to mark a capture.

static constexpr char	SIGN_ALWAYS = '+'
	Always print a sign character.

static constexpr char	SIGN_NEVER = ' '
	Never print a sign character.

static constexpr char	SIGN_NEG = '-'
	Print a sign character only for negative values (default).

static const self_type	DEFAULT
	Global default instance for use in situations where a format specifier isn't available.

Protected Member Functions
Align	align_of (char c)
	Validate character is alignment character and return the appropriate enum value.

bool	is_sign (char c)
	Validate is sign indicator.

Static Protected Member Functions
static const Property &	Get_Prop ()
	Character property map.

Detailed Description

Parsed version of a format specifier.

Literals are represented as an instance of this class, with the type set to LITERAL_TYPE and the literal text in the _ext field.

Definition at line 37 of file bwf_base.h.

Member Typedef Documentation

◆ self_type

using swoc::bwf::Spec::self_type = Spec

Self reference type.

Definition at line 38 of file bwf_base.h.

Member Enumeration Documentation

◆ Align

enum class swoc::bwf::Spec::Align : char

strong

Flag for how to align the output inside a limited width field.

Enumerator
NONE	No alignment.
LEFT	Left alignment '<'.
RIGHT	Right alignment '>'.
CENTER	Center alignment '^'.
SIGN	Align plus/minus sign before numeric fill. '='.

Definition at line 62 of file bwf_base.h.

Constructor & Destructor Documentation

◆ Spec() [1/2]

swoc::bwf::Spec::Spec ( )

inlineconstexpr

Constructor a default instance.

Definition at line 50 of file bwf_base.h.

◆ Spec() [2/2]

swoc::bwf::Spec::Spec ( const TextView & fmt )

Construct by parsing fmt.

Definition at line 66 of file bw_format.cc.

Member Function Documentation

◆ align_of()

Spec::Align swoc::bwf::Spec::align_of ( char c )

inlineprotected

Validate character is alignment character and return the appropriate enum value.

— Spec —

Definition at line 482 of file bwf_base.h.

◆ Get_Prop()

static const Property & swoc::bwf::Spec::Get_Prop ( )

inlinestaticprotected

Character property map.

Definition at line 123 of file bwf_base.h.

◆ has_numeric_type()

bool swoc::bwf::Spec::has_numeric_type ( ) const

inline

Check if the type in this is numeric.

Definition at line 507 of file bwf_base.h.

◆ has_pointer_type()

bool swoc::bwf::Spec::has_pointer_type ( ) const

inline

Check if the type is a raw pointer.

Definition at line 517 of file bwf_base.h.

◆ has_upper_case_type()

bool swoc::bwf::Spec::has_upper_case_type ( ) const

inline

Check if the type in this is an upper case variant.

Definition at line 512 of file bwf_base.h.

◆ has_valid_type()

bool swoc::bwf::Spec::has_valid_type ( ) const

inline

Check if the type is valid.

Definition at line 522 of file bwf_base.h.

◆ is_numeric_type()

bool swoc::bwf::Spec::is_numeric_type ( char c )

inlinestatic

Check if the type flag is numeric.

Definition at line 502 of file bwf_base.h.

◆ is_sign()

bool swoc::bwf::Spec::is_sign ( char c )

inlineprotected

Validate is sign indicator.

Definition at line 487 of file bwf_base.h.

◆ is_type()

bool swoc::bwf::Spec::is_type ( char c )

inlinestatic

Validate c is a specifier type indicator.

Definition at line 492 of file bwf_base.h.

◆ is_upper_case_type()

bool swoc::bwf::Spec::is_upper_case_type ( char c )

inlinestatic

Check if the type is an upper case variant.

Definition at line 497 of file bwf_base.h.

◆ parse()

bool swoc::bwf::Spec::parse ( TextView fmt )

Parse a format specification.

Parse a specifier. State is not reset, this should be default constructed before calling.

Definition at line 72 of file bw_format.cc.

Member Data Documentation

◆ _ext

std::string_view swoc::bwf::Spec::_ext

Extension if provided.

Definition at line 77 of file bwf_base.h.

◆ _fill

char swoc::bwf::Spec::_fill = ' '

Fill character.

Definition at line 59 of file bwf_base.h.

◆ _idx

int swoc::bwf::Spec::_idx = -1

Positional "name" of the specification.

Definition at line 75 of file bwf_base.h.

◆ _max

unsigned int swoc::bwf::Spec::_max = std::numeric_limits<unsigned int>::max()

Maximum width.

Definition at line 74 of file bwf_base.h.

◆ _min

unsigned int swoc::bwf::Spec::_min = 0

Minimum width.

Definition at line 72 of file bwf_base.h.

◆ _name

std::string_view swoc::bwf::Spec::_name

Name of the specification.

Definition at line 76 of file bwf_base.h.

◆ _prec

int swoc::bwf::Spec::_prec = -1

Precision.

Definition at line 73 of file bwf_base.h.

◆ _radix_lead_p

bool swoc::bwf::Spec::_radix_lead_p = false

Print leading radix indication.

Definition at line 70 of file bwf_base.h.

◆ _sign

char swoc::bwf::Spec::_sign = SIGN_NEG

Numeric sign style.

Definition at line 60 of file bwf_base.h.

◆ _type

char swoc::bwf::Spec::_type = DEFAULT_TYPE

Type / radix indicator.

Definition at line 69 of file bwf_base.h.

◆ CAPTURE_TYPE

char swoc::bwf::Spec::CAPTURE_TYPE = 1

staticconstexpr

Internal type to mark a capture.

Definition at line 43 of file bwf_base.h.

◆ DEFAULT

const Spec swoc::bwf::Spec::DEFAULT

static

Global default instance for use in situations where a format specifier isn't available.

Definition at line 80 of file bwf_base.h.

◆ DEFAULT_TYPE

char swoc::bwf::Spec::DEFAULT_TYPE = 'g'

staticconstexpr

Default format type.

Definition at line 40 of file bwf_base.h.

◆ INVALID_TYPE

char swoc::bwf::Spec::INVALID_TYPE = 0

staticconstexpr

Type for missing or invalid specifier.

Definition at line 41 of file bwf_base.h.

◆ LITERAL_TYPE

char swoc::bwf::Spec::LITERAL_TYPE = '"'

staticconstexpr

Internal type to mark a literal.

Definition at line 42 of file bwf_base.h.

◆ SIGN_ALWAYS

char swoc::bwf::Spec::SIGN_ALWAYS = '+'

staticconstexpr

Always print a sign character.

Definition at line 45 of file bwf_base.h.

◆ SIGN_NEG

char swoc::bwf::Spec::SIGN_NEG = '-'

staticconstexpr

Print a sign character only for negative values (default).

Definition at line 47 of file bwf_base.h.

◆ SIGN_NEVER

char swoc::bwf::Spec::SIGN_NEVER = ' '

staticconstexpr

Never print a sign character.

Definition at line 46 of file bwf_base.h.

The documentation for this struct was generated from the following files:
