#include <IPRange.h>

Inheritance diagram for swoc::IP4Range:

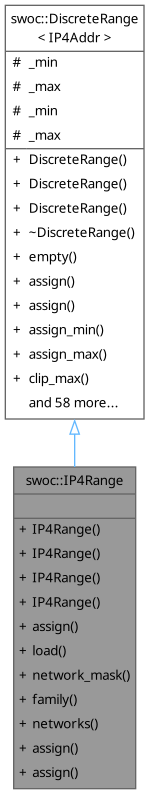

Collaboration diagram for swoc::IP4Range:

Classes
class	NetSource

Public Member Functions
constexpr	IP4Range ()=default
	Default constructor, invalid range.

	IP4Range (IP4Addr const &addr, IPMask const &mask)
	Construct from an network expressed as addr and mask.

	IP4Range (super_type const &r)

	IP4Range (string_view const &text)

self_type &	assign (IP4Addr const &addr, IPMask const &mask)
	< Import super class constructors.

bool	load (string_view text)
	< Import assign methods.

IPMask	network_mask () const

sa_family_t	family () const

NetSource	networks () const

self_type &	assign (metric_type const &min, metric_type const &max)

self_type &	assign (metric_type const &value)

Public Member Functions inherited from swoc::DiscreteRange< IP4Addr >
constexpr	DiscreteRange ()

constexpr	DiscreteRange (IP4Addr const &value)

constexpr	DiscreteRange (IP4Addr const &min, IP4Addr const &max)

bool	empty () const

self_type &	assign (metric_type const &min, metric_type const &max)

self_type &	assign (metric_type const &value)

self_type &	assign_min (metric_type const &min)

self_type &	assign_max (metric_type const &max)

self_type &	clip_max ()

metric_type const &	min () const

metric_type const &	max () const

bool	operator== (self_type const &that) const
	Equality.

bool	operator!= (self_type const &that) const
	Inequality.

bool	contains (metric_type const &value) const

bool	has_intersection_with (self_type const &that) const

self_type	intersection (self_type const &that) const

bool	is_adjacent_to (self_type const &that) const

bool	is_left_adjacent_to (self_type const &that) const

bool	has_union (self_type const &that) const

bool	is_superset_of (self_type const &that) const

bool	is_subset_of (self_type const &that) const

bool	is_strict_superset_of (self_type const &that) const

bool	is_strict_subset_of (self_type const &that) const

Relation	relationship (self_type const &that) const

EdgeRelation	left_edge_relationship (self_type const &that) const

self_type	hull (self_type const &that) const

bool	is_singleton () const
	Check if the interval is exactly one element.

bool	operator! () const

	operator bool () const

bool	is_maximal () const

self_type &	operator&= (self_type const &that)

self_type &	operator\|= (self_type const &that)

self_type &	clear ()
	Make the range empty.

constexpr	DiscreteRange ()

constexpr	DiscreteRange (IP4Addr const &value)

constexpr	DiscreteRange (IP4Addr const &min, IP4Addr const &max)

bool	empty () const

self_type &	assign (metric_type const &min, metric_type const &max)

self_type &	assign (metric_type const &value)

self_type &	assign_min (metric_type const &min)

self_type &	assign_max (metric_type const &max)

self_type &	clip_max ()

metric_type const &	min () const

metric_type const &	max () const

bool	operator== (self_type const &that) const
	Equality.

bool	operator!= (self_type const &that) const
	Inequality.

bool	contains (metric_type const &value) const

bool	has_intersection_with (self_type const &that) const

self_type	intersection (self_type const &that) const

bool	is_adjacent_to (self_type const &that) const

bool	is_left_adjacent_to (self_type const &that) const

bool	has_union (self_type const &that) const

bool	is_superset_of (self_type const &that) const

bool	is_subset_of (self_type const &that) const

bool	is_strict_superset_of (self_type const &that) const

bool	is_strict_subset_of (self_type const &that) const

Relation	relationship (self_type const &that) const

EdgeRelation	left_edge_relationship (self_type const &that) const

self_type	hull (self_type const &that) const

bool	is_singleton () const
	Check if the interval is exactly one element.

bool	operator! () const

	operator bool () const

bool	is_maximal () const

self_type &	operator&= (self_type const &that)

self_type &	operator\|= (self_type const &that)

self_type &	clear ()
	Make the range empty.

Additional Inherited Members
Public Types inherited from swoc::DiscreteRange< IP4Addr >
using	metric_type
	Export metric type.

using	Relation
	Import type for convenience.

using	EdgeRelation
	Import type for convenience.

Protected Attributes inherited from swoc::DiscreteRange< IP4Addr >
IP4Addr	_min
	The minimum value in the interval.

IP4Addr	_max
	the maximum value in the interval

IP4Addr	_min
	The minimum value in the interval.

IP4Addr	_max
	the maximum value in the interval

Related Symbols inherited from swoc::DiscreteRange< IP4Addr >
bool	operator!= (DiscreteRange< IP4Addr > const &lhs, DiscreteRange< IP4Addr > const &rhs)

bool	operator^ (DiscreteRange< IP4Addr > const &lhs, DiscreteRange< IP4Addr > const &rhs)

bool	operator< (DiscreteRange< IP4Addr > const &lhs, DiscreteRange< IP4Addr > const &rhs)

bool	operator<= (DiscreteRange< IP4Addr > const &lhs, DiscreteRange< IP4Addr > const &rhs)

bool	operator> (DiscreteRange< IP4Addr > const &lhs, DiscreteRange< IP4Addr > const &rhs)

bool	operator>= (DiscreteRange< IP4Addr > const &lhs, DiscreteRange< IP4Addr > const &rhs)

bool	operator!= (DiscreteRange< IP4Addr > const &lhs, DiscreteRange< IP4Addr > const &rhs)

bool	operator^ (DiscreteRange< IP4Addr > const &lhs, DiscreteRange< IP4Addr > const &rhs)

bool	operator< (DiscreteRange< IP4Addr > const &lhs, DiscreteRange< IP4Addr > const &rhs)

bool	operator<= (DiscreteRange< IP4Addr > const &lhs, DiscreteRange< IP4Addr > const &rhs)

bool	operator> (DiscreteRange< IP4Addr > const &lhs, DiscreteRange< IP4Addr > const &rhs)

bool	operator>= (DiscreteRange< IP4Addr > const &lhs, DiscreteRange< IP4Addr > const &rhs)

Detailed Description

An inclusive range of IPv4 addresses.

Definition at line 26 of file IPRange.h.

Constructor & Destructor Documentation

◆ IP4Range() [1/3]

swoc::IP4Range::IP4Range	(	swoc::IP4Addr const &	addr,
		swoc::IPMask const &	mask )

Construct from an network expressed as addr and mask.

Definition at line 932 of file swoc_ip.cc.

◆ IP4Range() [2/3]

swoc::IP4Range::IP4Range ( super_type const & r )

inline

Construct from super type.

Definition at line 40 of file IPRange.h.

◆ IP4Range() [3/3]

swoc::IP4Range::IP4Range ( string_view const & text )

inline

Construct range from text.

Parameters

text	Range text.

See also: IP4Range::load

This results in an empty range if text is not a valid string. If this should be checked, use load.

See also: load

Definition at line 1892 of file IPRange.h.

Member Function Documentation

◆ assign() [1/3]

IP4Range & swoc::IP4Range::assign	(	swoc::IP4Addr const &	addr,
		swoc::IPMask const &	mask )

< Import super class constructors.

Set this range.

Parameters

addr	Minimum address.
mask	CIDR mask to compute maximum adddress from addr.

Returns: this

Definition at line 937 of file swoc_ip.cc.

◆ assign() [2/3]

self_type & swoc::DiscreteRange< IP4Addr >::assign	(	metric_type const &	min,
		metric_type const &	max )

Update the range.

Parameters

min	New minimum value.
max	New maximum value.

Returns: this.

◆ assign() [3/3]

self_type & swoc::DiscreteRange< IP4Addr >::assign ( metric_type const & value )

Update the range.

Parameters

value The new minimum and maximum value.

Returns: this.

The range will contain the single value value.

◆ family()

sa_family_t swoc::IP4Range::family ( ) const

inline

Returns: The range family.

Definition at line 87 of file IPRange.h.

◆ load()

bool swoc::IP4Range::load ( string_view text )

< Import assign methods.

Assign to this range from text.

Parameters

text	Range text.

The text must be in one of three formats.

A dashed range, "addr1-addr2"
A singleton, "addr". This is treated as if it were "addr-addr", a range of size 1.
CIDR notation, "addr/cidr" where "cidr" is a number from 0 to the number of bits in the address.

Definition at line 954 of file swoc_ip.cc.

◆ network_mask()

IPMask swoc::IP4Range::network_mask ( ) const

Compute the mask for this as a network.

Returns: If this is a network, the mask for that network. Otherwise an invalid mask.

See also: IPMask::is_valid

Definition at line 983 of file swoc_ip.cc.

◆ networks()

auto swoc::IP4Range::networks ( ) const

inline

Generate a list of networks covering this range.

Returns: A network generator.

The returned object can be used as an iterator, or as a container to iterating over the unique minimal set of networks that cover this range.

void (IP4Range const& range) {
  for ( auto const& net : range ) {
    net.addr(); // network address.
    net.mask(); // network mask;
  }
}

Definition at line 1897 of file IPRange.h.
