swoc::IPMask Class Reference

#include <IPAddr.h>

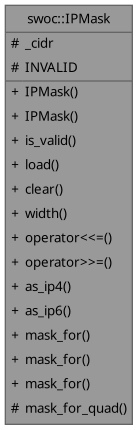

Collaboration diagram for swoc::IPMask:

Public Types
using	raw_type = uint8_t
	Storage for mask width.

Public Member Functions
	IPMask ()=default
	Default construct to invalid mask.
	IPMask (raw_type width)
bool	is_valid () const
bool	load (string_view const &text)
self_type &	clear ()
	Change to default constructed state (invalid).
raw_type	width () const
	The width of the mask.
self_type &	operator<<= (raw_type n)
self_type &	operator>>= (raw_type n)
IP4Addr	as_ip4 () const
IP6Addr	as_ip6 () const

Static Public Member Functions
static self_type	mask_for (IPAddr const &addr)
static self_type	mask_for (IP4Addr const &addr)
static self_type	mask_for (IP6Addr const &addr)

Static Protected Member Functions
static raw_type	mask_for_quad (IP6Addr::quad_type q)
	Compute a partial IPv6 mask, sized for the basic storage type.

Protected Attributes
raw_type	_cidr = INVALID
	Mask width in bits.

Static Protected Attributes
static constexpr auto	INVALID = std::numeric_limits<raw_type>::max()
	Marker value for an invalid mask.

Friends
class	IP4Addr
class	IP6Addr

Detailed Description

An IP address mask.

This is essentially a width for a bit mask.

Definition at line 666 of file IPAddr.h.

Member Typedef Documentation

raw_type

using swoc::IPMask::raw_type = uint8_t

Storage for mask width.

Definition at line 673 of file IPAddr.h.

Constructor & Destructor Documentation

IPMask()

swoc::IPMask::IPMask ( raw_type width )

inlineexplicit

Construct a mask of width.

Parameters

width

Number of bits in the mask.

Note

Because this is a network mask, it is always left justified.

Definition at line 1135 of file IPAddr.h.

Member Function Documentation

as_ip4()

IP4Addr swoc::IPMask::as_ip4 ( ) const

inline

The mask as an IPv4 address.

Returns

An IPv4 address that is the mask.

If the mask is wider than an IPv4 address, the maximum mask is returned.

Definition at line 1163 of file IPAddr.h.

as_ip6()

IP6Addr swoc::IPMask::as_ip6

(

)

const

The mask as an IPv6 address.

Returns

An IPv6 address that is the mask.

If the mask is wider than an IPv6 address, the maximum mask is returned.

Definition at line 724 of file swoc_ip.cc.

clear()

auto swoc::IPMask::clear ( )

inline

Change to default constructed state (invalid).

Definition at line 1175 of file IPAddr.h.

is_valid()

bool swoc::IPMask::is_valid ( ) const

inline

Returns

true if the mask is valid, false if not.

Definition at line 1138 of file IPAddr.h.

load()

bool swoc::IPMask::load

(

string_view const &

text

)

Parse mask from text.

Parameters

text	A number in string format.

Returns

true if a valid CIDR value, false if not.

Definition at line 663 of file swoc_ip.cc.

mask_for() [1/3]

IPMask swoc::IPMask::mask_for ( IP4Addr const & addr )

static

Copmute a mask for the network at addr.

Parameters

addr	Lower bound of network.

Returns

A mask with the width of the largest network starting at addr.

Definition at line 698 of file swoc_ip.cc.

mask_for() [2/3]

IPMask swoc::IPMask::mask_for ( IP6Addr const & addr )

static

Copmute a mask for the network at addr.

Parameters

addr	Lower bound of network.

Returns

A mask with the width of the largest network starting at addr.

Definition at line 710 of file swoc_ip.cc.

mask_for() [3/3]

IPMask swoc::IPMask::mask_for ( IPAddr const & addr )

static

Copmute a mask for the network at addr.

Parameters

addr	Lower bound of network.

Returns

A mask with the width of the largest network starting at addr.

Definition at line 674 of file swoc_ip.cc.

mask_for_quad()

auto swoc::IPMask::mask_for_quad ( IP6Addr::quad_type q )

staticprotected

Compute a partial IPv6 mask, sized for the basic storage type.

Definition at line 684 of file swoc_ip.cc.

operator<<=()

auto swoc::IPMask::operator<<= ( raw_type n )

inline

Extend the mask (cover more addresses).

Parameters

n	Number of bits to extend.

Returns

this

Effectively shifts the mask left, bringing in 0 bits on the right.

Definition at line 1180 of file IPAddr.h.

operator>>=()

auto swoc::IPMask::operator>>= ( IPMask::raw_type n )

inline

Narrow the mask (cover fewer addresses).

Parameters

n	Number of bits to narrow.

Returns

this

Effectively shift the mask right, bringing in 1 bits on the left.

Definition at line 1187 of file IPAddr.h.

width()

auto swoc::IPMask::width ( ) const

inline

The width of the mask.

Definition at line 1143 of file IPAddr.h.

Friends And Related Symbol Documentation

IP4Addr

friend class IP4Addr

friend

Definition at line 669 of file IPAddr.h.

IP6Addr

friend class IP6Addr

friend

Definition at line 670 of file IPAddr.h.

Member Data Documentation

_cidr

raw_type swoc::IPMask::_cidr = INVALID

protected

Mask width in bits.

Definition at line 757 of file IPAddr.h.

INVALID

auto swoc::IPMask::INVALID = std::numeric_limits<raw_type>::max()

staticconstexprprotected

Marker value for an invalid mask.

Definition at line 755 of file IPAddr.h.

---

The documentation for this class was generated from the following files:

• IPAddr.h
• swoc_ip.cc
