swoc::IP4Srv Class Reference

An IPv4 address and host_order_port, modeled on an SRV type for DNS. More...

#include <IPSrv.h>

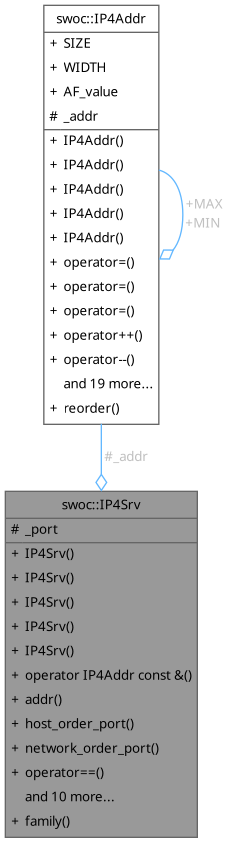

Collaboration diagram for swoc::IP4Srv:

Public Member Functions
constexpr	IP4Srv ()=default
	Default constructor.
	IP4Srv (IP4Addr addr, in_port_t port=0)
	IP4Srv (IPSrv const &that)
	IP4Srv (sockaddr_in const *s)
	IP4Srv (swoc::TextView text)
constexpr	operator IP4Addr const & () const
	Implicit conversion to an address.
constexpr IP4Addr const &	addr () const
in_port_t	host_order_port () const
in_port_t	network_order_port () const
bool	operator== (self_type that) const
bool	operator!= (self_type that) const
bool	operator< (self_type that) const
bool	operator<= (self_type const &that) const
bool	operator> (self_type const &that) const
bool	operator>= (self_type const &that) const
bool	load (swoc::TextView text)
self_type &	assign (IP4Addr const &addr)
self_type &	assign (in_port_t port)
self_type &	assign (IP4Addr const &addr, in_port_t port)
self_type &	assign (sockaddr_in const *s)

Static Public Member Functions
static constexpr sa_family_t	family ()

Protected Attributes
IP4Addr	_addr
	Address.
in_port_t	_port = 0
	Port [host order].

Detailed Description

An IPv4 address and host_order_port, modeled on an SRV type for DNS.

Definition at line 20 of file IPSrv.h.

Constructor & Destructor Documentation

IP4Srv() [1/4]

swoc::IP4Srv::IP4Srv ( IP4Addr addr, in_port_t port = 0 )

inlineexplicit

Construct from address and host_order_port.

Parameters

addr	The address.
port	The port in host order, defaults to 0.

Definition at line 404 of file IPSrv.h.

IP4Srv() [2/4]

swoc::IP4Srv::IP4Srv ( IPSrv const & that )

inlineexplicit

Construct from generic.

Parameters

that	The generic SRV.

If that is not IPv4 the result is a default constructed instance.

Definition at line 405 of file IPSrv.h.

IP4Srv() [3/4]

swoc::IP4Srv::IP4Srv ( sockaddr_in const * s )

inline

Construct from socket address.

Parameters

sa	Socket address.

Definition at line 46 of file IPSrv.h.

IP4Srv() [4/4]

swoc::IP4Srv::IP4Srv ( swoc::TextView text )

explicit

Construct from a string.

Parameters

text	Input text.

If the port is not present it is set to zero.

Definition at line 738 of file swoc_ip.cc.

Member Function Documentation

addr()

IP4Addr const & swoc::IP4Srv::addr ( ) const

inlineconstexpr

Returns

The address.

Definition at line 433 of file IPSrv.h.

assign() [1/4]

auto swoc::IP4Srv::assign ( in_port_t port )

inline

Assign a port.

Parameters

port	Port to assign (host order)

Returns

this.

Definition at line 413 of file IPSrv.h.

assign() [2/4]

auto swoc::IP4Srv::assign ( IP4Addr const & addr )

inline

Assign an IPv4 address.

Parameters

addr	Address to assign.

Returns

this

Definition at line 408 of file IPSrv.h.

assign() [3/4]

auto swoc::IP4Srv::assign ( IP4Addr const & addr, in_port_t port )

inline

Assign an address and port.

Parameters

addr	Address to assign.
port	Port to assign (host order).

Returns

this

Definition at line 418 of file IPSrv.h.

assign() [4/4]

auto swoc::IP4Srv::assign ( sockaddr_in const * s )

inline

Assign an address and port from an IPv4 socket address.

Parameters

s	A socket address.

Returns

this

Definition at line 424 of file IPSrv.h.

family()

sa_family_t swoc::IP4Srv::family ( )

inlinestaticconstexpr

The protocol family.

Returns

AF_INET

Note

Useful primarily for template classes.

Definition at line 445 of file IPSrv.h.

host_order_port()

in_port_t swoc::IP4Srv::host_order_port ( ) const

inline

Returns

The host_order_port in host order.

Definition at line 437 of file IPSrv.h.

load()

bool swoc::IP4Srv::load

(

swoc::TextView

text

)

Load from a string.

Parameters

text	Input string.

Returns

true if text in a valid format, false if not.

Definition at line 743 of file swoc_ip.cc.

network_order_port()

in_port_t swoc::IP4Srv::network_order_port ( ) const

inline

Returns

The host_order_port in network order.

Definition at line 441 of file IPSrv.h.

operator IP4Addr const &()

swoc::IP4Srv::operator IP4Addr const & ( ) const

inlineconstexpr

Implicit conversion to an address.

Definition at line 429 of file IPSrv.h.

operator!=()

bool swoc::IP4Srv::operator!= ( IP4Srv::self_type that ) const

inline

Definition at line 454 of file IPSrv.h.

operator<()

bool swoc::IP4Srv::operator< ( IP4Srv::self_type that ) const

inline

Definition at line 457 of file IPSrv.h.

operator<=()

bool swoc::IP4Srv::operator<= ( IP4Srv::self_type const & that ) const

inline

Definition at line 461 of file IPSrv.h.

operator==()

bool swoc::IP4Srv::operator== ( IP4Srv::self_type that ) const

inline

Definition at line 450 of file IPSrv.h.

operator>()

bool swoc::IP4Srv::operator> ( IP4Srv::self_type const & that ) const

inline

Definition at line 466 of file IPSrv.h.

operator>=()

bool swoc::IP4Srv::operator>= ( IP4Srv::self_type const & that ) const

inline

Definition at line 470 of file IPSrv.h.

Member Data Documentation

_addr

IP4Addr swoc::IP4Srv::_addr

protected

Address.

Definition at line 118 of file IPSrv.h.

_port

in_port_t swoc::IP4Srv::_port = 0

protected

Port [host order].

Definition at line 119 of file IPSrv.h.

---

The documentation for this class was generated from the following files:

• IPSrv.h
• swoc_ip.cc
