An IP address and host_order_port, modeled on an SRV type for DNS. More...

#include <IPSrv.h>

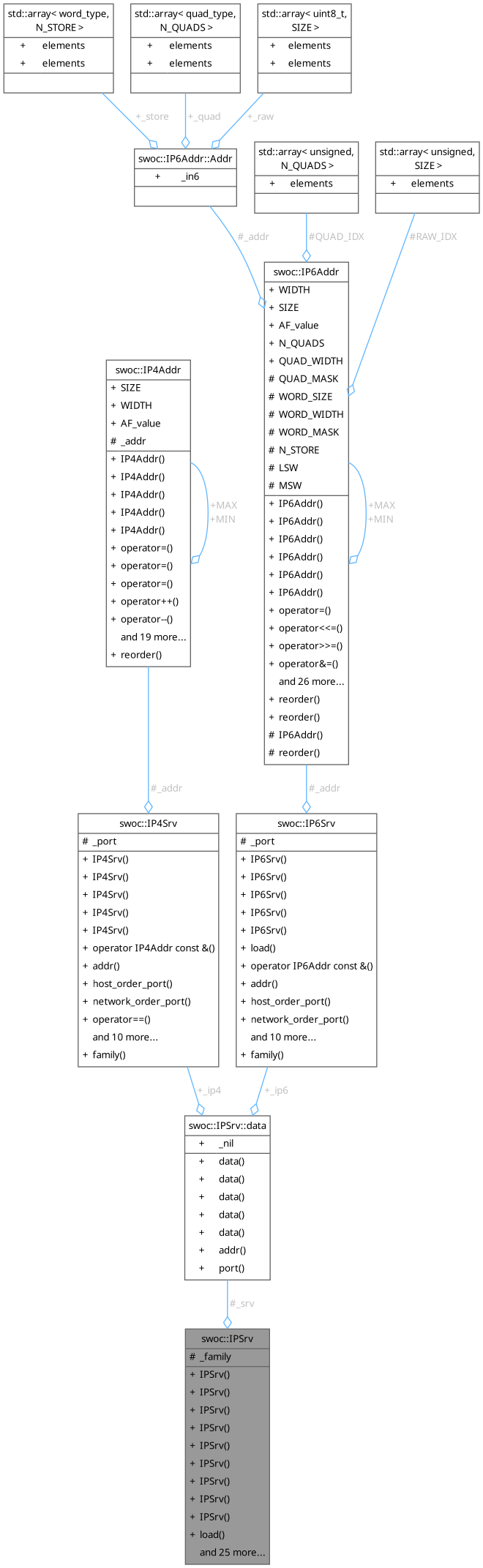

Collaboration diagram for swoc::IPSrv:

Classes
union	data
	Family specialized data. More...

Public Member Functions
	IPSrv ()=default
	Default constructor.

	IPSrv (IP4Addr addr, in_port_t port=0)

	IPSrv (IP6Addr addr, in_port_t port=0)
	Construct for IPv6 address and port.

	IPSrv (IPAddr addr, in_port_t port=0)
	Construct from generic address and port.

	IPSrv (sockaddr const *sa)
	Construct from socket address.

	IPSrv (sockaddr_in const *s)
	Construct IPv4 service from socket address.

	IPSrv (sockaddr_in6 const *s)
	Construct IPv6 service from socket address.

	IPSrv (IPEndpoint const &ep)
	Construct from Endpoint.

	IPSrv (swoc::TextView text)

bool	load (swoc::TextView text)

IPAddr	addr () const

constexpr in_port_t	host_order_port () const

in_port_t	network_order_port () const

constexpr sa_family_t	family () const

bool	is_valid () const

bool	is_ip4 () const

bool	is_ip6 () const

IP4Srv const &	ip4 () const

IP6Srv const &	ip6 () const

self_type &	assign (IP4Addr const &addr)

self_type &	assign (IP6Addr const &addr)

self_type &	assign (IPAddr const &addr)

self_type &	assign (in_port_t port)

self_type &	assign (IP4Addr const &addr, in_port_t port)

self_type &	assign (IP6Addr const &addr, in_port_t port)

self_type &	assign (sockaddr const *sa)

self_type &	assign (sockaddr_in const *s)

self_type &	assign (sockaddr_in6 const *s)

self_type &	assign (IPAddr const &addr, in_port_t port)

self_type &	operator= (self_type const &that)=default
	Copy assignment.

self_type &	operator= (IP4Srv const &that)
	Assign from IPv4.

self_type &	operator= (IP6Srv const &that)
	Assign from IPv6.

self_type &	operator= (sockaddr const *sa)
	Assign from generic socket address.

self_type &	operator= (sockaddr_in const *s)
	Assign from IPv4 socket address.

self_type &	operator= (sockaddr_in6 const *s)
	Assign from IPv6 socket address.

Protected Attributes
union swoc::IPSrv::data	_srv

sa_family_t	_family = AF_UNSPEC
	Protocol family.

Detailed Description

An IP address and host_order_port, modeled on an SRV type for DNS.

Definition at line 224 of file IPSrv.h.

Constructor & Destructor Documentation

◆ IPSrv() [1/8]

swoc::IPSrv::IPSrv	(	IP4Addr	addr,
		in_port_t	port = 0 )

inlineexplicit

Definition at line 230 of file IPSrv.h.

◆ IPSrv() [2/8]

swoc::IPSrv::IPSrv	(	IP6Addr	addr,
		in_port_t	port = 0 )

inlineexplicit

Construct for IPv6 address and port.

Definition at line 232 of file IPSrv.h.

◆ IPSrv() [3/8]

swoc::IPSrv::IPSrv	(	IPAddr	addr,
		in_port_t	port = 0 )

explicit

Construct from generic address and port.

Definition at line 816 of file swoc_ip.cc.

◆ IPSrv() [4/8]

swoc::IPSrv::IPSrv ( sockaddr const * sa )

inlineexplicit

Construct from socket address.

Definition at line 555 of file IPSrv.h.

◆ IPSrv() [5/8]

swoc::IPSrv::IPSrv ( sockaddr_in const * s )

inlineexplicit

Construct IPv4 service from socket address.

Definition at line 553 of file IPSrv.h.

◆ IPSrv() [6/8]

swoc::IPSrv::IPSrv ( sockaddr_in6 const * s )

inlineexplicit

Construct IPv6 service from socket address.

Definition at line 554 of file IPSrv.h.

◆ IPSrv() [7/8]

swoc::IPSrv::IPSrv ( IPEndpoint const & ep )

explicit

Construct from Endpoint.

Definition at line 826 of file swoc_ip.cc.

◆ IPSrv() [8/8]

swoc::IPSrv::IPSrv ( swoc::TextView text )

explicit

Construct from a string.

Parameters

text	Input text.

If the port is not present it is set to zero.

Definition at line 790 of file swoc_ip.cc.

Member Function Documentation

◆ addr()

IPAddr swoc::IPSrv::addr ( ) const

inline

Returns: The address.

Definition at line 560 of file IPSrv.h.

◆ assign() [1/10]

auto swoc::IPSrv::assign ( in_port_t port )

inline

Assign port.

Parameters

port	Port [host order].

Returns: this.

Definition at line 628 of file IPSrv.h.

◆ assign() [2/10]

auto swoc::IPSrv::assign ( IP4Addr const & addr )

inline

Change the address.

Parameters

addr	Address to assign.

Returns: this

Definition at line 621 of file IPSrv.h.

◆ assign() [3/10]

auto swoc::IPSrv::assign	(	IP4Addr const &	addr,
		in_port_t	port )

inline

Assign an IPv4 address and port.

Parameters

addr	Address.
port	Port [host order].

Returns: this

Definition at line 607 of file IPSrv.h.

◆ assign() [4/10]

auto swoc::IPSrv::assign ( IP6Addr const & addr )

inline

Change the address.

Parameters

addr	Address to assign.

Returns: this

Definition at line 600 of file IPSrv.h.

◆ assign() [5/10]

auto swoc::IPSrv::assign	(	IP6Addr const &	addr,
		in_port_t	port )

inline

Assign an IPv6 address and port.

Parameters

addr	Address.
port	Port [host order].

Returns: this

Definition at line 614 of file IPSrv.h.

◆ assign() [6/10]

auto swoc::IPSrv::assign ( IPAddr const & addr )

inline

Assign an address.

Parameters

addr Address.

Returns: this

If addr isn't valid then no assignment is made, otherwise the family is changed to that of addr.

Definition at line 638 of file IPSrv.h.

◆ assign() [7/10]

auto swoc::IPSrv::assign	(	IPAddr const &	addr,
		in_port_t	port )

inline

Assign an address and port.

Parameters

addr	Address.
port	Port [host order].

Returns: this

If addr isn't valid then no assignment is made, otherwise the family is changed to match addr.

Definition at line 648 of file IPSrv.h.

◆ assign() [8/10]

auto swoc::IPSrv::assign ( sockaddr const * sa )

Assogm address amd [prt/

Parameters

sa	Socket address.

Returns: this

The assignment is ignored if sa is not a valid IP family, otherwise the family is changed to that of sa.

Definition at line 837 of file swoc_ip.cc.

◆ assign() [9/10]

auto swoc::IPSrv::assign ( sockaddr_in const * s )

inline

Assign an IPv4 address and port.

Parameters

s	Socket address.

Returns: this

Definition at line 674 of file IPSrv.h.

◆ assign() [10/10]

auto swoc::IPSrv::assign ( sockaddr_in6 const * s )

inline

Assign an IPv6 address and port.

Parameters

s	Socket address.

Returns: this

Definition at line 681 of file IPSrv.h.

◆ family()

sa_family_t swoc::IPSrv::family ( ) const

inlineconstexpr

Returns: The protocol of the current value.

Definition at line 565 of file IPSrv.h.

◆ host_order_port()

in_port_t swoc::IPSrv::host_order_port ( ) const

inlineconstexpr

Returns: The host_order_port in host order..

Definition at line 590 of file IPSrv.h.

◆ ip4()

IP4Srv const & swoc::IPSrv::ip4 ( ) const

inline

Returns: The IPv4 data.

Definition at line 581 of file IPSrv.h.

◆ ip6()

IP6Srv const & swoc::IPSrv::ip6 ( ) const

inline

Returns: The IPv6 data.

Definition at line 585 of file IPSrv.h.

◆ is_ip4()

bool swoc::IPSrv::is_ip4 ( ) const

inline

Returns: true if the data is IPv4, false if not.

Definition at line 572 of file IPSrv.h.

◆ is_ip6()

bool swoc::IPSrv::is_ip6 ( ) const

inline

Returns: true if hte data is IPv6, false if not.

Definition at line 577 of file IPSrv.h.

◆ is_valid()

bool swoc::IPSrv::is_valid ( ) const

inline

Returns: true if this is a valid service, false if not.

Definition at line 569 of file IPSrv.h.

◆ load()

bool swoc::IPSrv::load ( swoc::TextView text )

Load from a string.

Parameters

text	Input string.

Returns: true if text in a valid format, false if not.

Definition at line 795 of file swoc_ip.cc.

◆ network_order_port()

in_port_t swoc::IPSrv::network_order_port ( ) const

inline

Returns: The host_order_port in network order.

Definition at line 595 of file IPSrv.h.

◆ operator=() [1/5]

auto swoc::IPSrv::operator= ( IP4Srv const & that )

inline

Assign from IPv4.

Definition at line 660 of file IPSrv.h.

◆ operator=() [2/5]

auto swoc::IPSrv::operator= ( IP6Srv const & that )

inline

Assign from IPv6.

Definition at line 667 of file IPSrv.h.

◆ operator=() [3/5]

IPSrv::self_type & swoc::IPSrv::operator= ( sockaddr const * sa )

inline

Assign from generic socket address.

Definition at line 687 of file IPSrv.h.

◆ operator=() [4/5]

IPSrv::self_type & swoc::IPSrv::operator= ( sockaddr_in const * s )

inline

Assign from IPv4 socket address.

Definition at line 691 of file IPSrv.h.

◆ operator=() [5/5]

IPSrv::self_type & swoc::IPSrv::operator= ( sockaddr_in6 const * s )

inline

Assign from IPv6 socket address.

Definition at line 695 of file IPSrv.h.

Member Data Documentation

◆ _family

sa_family_t swoc::IPSrv::_family = AF_UNSPEC

protected

Protocol family.

Definition at line 399 of file IPSrv.h.

The documentation for this class was generated from the following files:
