#include <IPAddr.h>

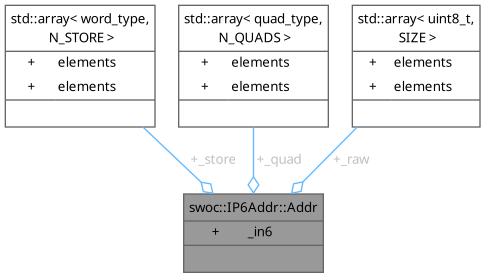

Collaboration diagram for swoc::IP6Addr::Addr:

Public Attributes
word_store_type	_store = {0}
	0 is MSW, 1 is LSW.

quad_store_type	_quad
	By quad.

raw_type	_raw
	By byte.

in6_addr	_in6
	By networking type (but in host order!)

Detailed Description

Type for digging around inside the address, with the various forms of access. These are in sort of host order - _store elements are host order, but the MSW and LSW are swapped (big-endian). This makes various bits of the implementation easier. Conversion to and from network order is via the reorder method.

Definition at line 457 of file IPAddr.h.

Member Data Documentation

◆ _in6

in6_addr swoc::IP6Addr::Addr::_in6

By networking type (but in host order!)

Definition at line 461 of file IPAddr.h.

◆ _quad

quad_store_type swoc::IP6Addr::Addr::_quad

By quad.

Definition at line 459 of file IPAddr.h.

◆ _raw

raw_type swoc::IP6Addr::Addr::_raw

By byte.

Definition at line 460 of file IPAddr.h.

◆ _store

word_store_type swoc::IP6Addr::Addr::_store = {0}

0 is MSW, 1 is LSW.

Definition at line 458 of file IPAddr.h.

The documentation for this union was generated from the following file:
