#include <IPAddr.h>

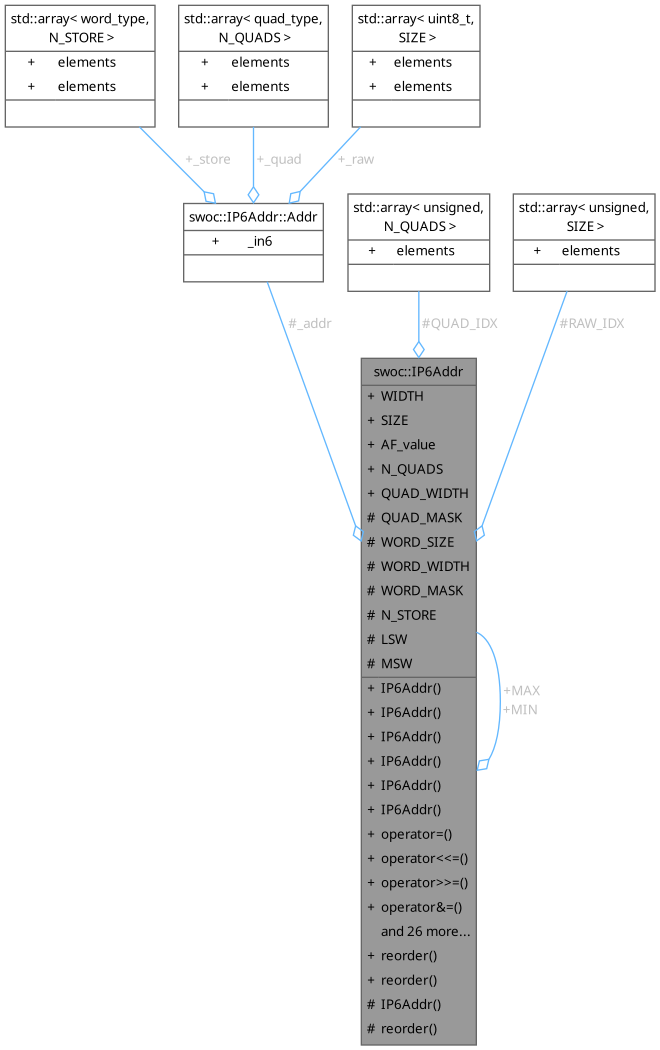

Collaboration diagram for swoc::IP6Addr:

Classes
union	Addr

Public Types
using	quad_type = uint16_t
	Size of one segment of an IPv6 address.

using	raw_type = std::array<uint8_t, SIZE>

Public Member Functions
	IP6Addr ()=default
	Default constructor - ANY address.

	IP6Addr (self_type const &that)=default

	IP6Addr (in6_addr const &addr)
	Construct using IPv6 addr.

	IP6Addr (sockaddr_in6 const *addr)
	Construct from `sockaddr_in`.

	IP6Addr (string_view const &text)

	IP6Addr (IP4Addr addr)

self_type &	operator= (self_type const &that)=default
	Self assignment.

self_type &	operator<<= (unsigned n)

self_type &	operator>>= (unsigned n)

self_type &	operator&= (self_type const &that)

self_type &	operator\|= (self_type const &that)

self_type &	operator++ ()
	Increment address.

self_type &	operator-- ()
	Decrement address.

self_type &	operator= (in6_addr const &addr)
	Assign from IPv6 raw address.

self_type &	operator= (sockaddr_in6 const *addr)
	Set to the address in addr.

constexpr uint8_t	operator[] (int idx) const

sockaddr_in6 *	copy_to (sockaddr_in6 *sin6) const

sockaddr *	copy_to (sockaddr *sa) const

in6_addr	host_order () const
	Return the address in host order.

in6_addr &	host_order (in6_addr &dst) const

in6_addr	network_order () const
	Return the address in network order.

in6_addr &	network_order (in6_addr &dst) const

bool	load (string_view const &str)

int	cmp (self_type const &that) const
	Generic three value compare.

constexpr sa_family_t	family () const

bool	is_any () const

bool	is_loopback () const

bool	is_multicast () const

bool	is_link_local () const

bool	is_private () const

bool	is_mapped_ip4 () const

self_type &	clear ()

self_type &	operator&= (IPMask const &that)

self_type &	operator\|= (IPMask const &that)

template<typename T>
auto	as_span () -> std::enable_if_t< swoc::meta::is_any_of_v< T, std::byte, uint8_t, uint16_t, uint32_t, uint64_t >, swoc::MemSpan< T > >

template<typename T>
auto	as_span () const -> std::enable_if_t< swoc::meta::is_any_of_v< typename std::remove_const_t< T >, std::byte, uint8_t, uint16_t, uint32_t, uint64_t >, swoc::MemSpan< T const > >

Static Public Member Functions
static void	reorder (in6_addr &dst, raw_type const &src)

static void	reorder (raw_type &dst, in6_addr const &src)

Static Public Attributes
static constexpr size_t	WIDTH = 128
	Number of bits in the address.

static constexpr size_t	SIZE = WIDTH / std::numeric_limits<uint8_t>::digits
	Size of address in bytes.

static constexpr sa_family_t	AF_value = AF_INET6
	Address family type.

static constexpr size_t	N_QUADS = SIZE / sizeof(quad_type)

static constexpr size_t	QUAD_WIDTH = std::numeric_limits<uint8_t>::digits * sizeof(quad_type)
	Number of bits per quad.

static const self_type	MIN {0, 0}
	Minimum value of an address.

static const self_type	MAX {std::numeric_limits<uint64_t>::max(), std::numeric_limits<uint64_t>::max()}
	Maximum value of an address.

Protected Types
using	quad_store_type = std::array<quad_type, N_QUADS>

using	word_type = uint64_t
	Type used as a "word", the natural working unit of the address.

using	word_store_type = std::array<word_type, N_STORE>
	Type used to store the address.

Protected Member Functions
	IP6Addr (word_store_type::value_type msw, word_store_type::value_type lsw)

Static Protected Member Functions
static void	reorder (unsigned char dst[WORD_SIZE], unsigned char const src[WORD_SIZE])

Protected Attributes
union swoc::IP6Addr::Addr	_addr

Static Protected Attributes
static constexpr quad_type	QUAD_MASK = ~quad_type{0}
	A bit mask of all 1 bits the size of a quad.

static constexpr size_t	WORD_SIZE = sizeof(word_type)

static constexpr size_t	WORD_WIDTH = std::numeric_limits<uint8_t>::digits * WORD_SIZE
	Number of bits per word.

static constexpr word_type	WORD_MASK = ~word_type(0)
	Mask the size of a word.

static constexpr size_t	N_STORE = SIZE / WORD_SIZE
	Number of words used for basic address storage.

static constexpr unsigned	LSW = 1
	Least significant word index.

static constexpr unsigned	MSW = 0
	Most significant word index.

static constexpr std::array< unsigned, N_QUADS >	QUAD_IDX = {3, 2, 1, 0, 7, 6, 5, 4}

static constexpr std::array< unsigned, SIZE >	RAW_IDX = {7, 6, 5, 4, 3, 2, 1, 0, 15, 14, 13, 12, 11, 10, 9, 8}

Friends
class	IP6Range

class	IPMask

bool	operator== (self_type const &lhs, self_type const &rhs)

bool	operator!= (self_type const &lhs, self_type const &rhs)

bool	operator< (self_type const &lhs, self_type const &rhs)

bool	operator<= (self_type const &lhs, self_type const &rhs)

IP6Addr	operator& (IP6Addr const &addr, IPMask const &mask)

IP6Addr	operator\| (IP6Addr const &addr, IPMask const &mask)

Detailed Description

Storage for an IPv6 address. Internal storage is not necessarily network ordered.

See also: network_order; copy_to

Definition at line 200 of file IPAddr.h.

Member Typedef Documentation

◆ quad_store_type

using swoc::IP6Addr::quad_store_type = std::array<quad_type, N_QUADS>

protected

Direct access type for the address by quads (16 bits). This corresponds to the elements of the text format of the address.

Definition at line 431 of file IPAddr.h.

◆ quad_type

using swoc::IP6Addr::quad_type = uint16_t

Size of one segment of an IPv6 address.

Definition at line 211 of file IPAddr.h.

◆ raw_type

using swoc::IP6Addr::raw_type = std::array<uint8_t, SIZE>

Direct access type for the address. Equivalent to the data type for data member s6_addr in in6_addr.

Definition at line 218 of file IPAddr.h.

◆ word_store_type

using swoc::IP6Addr::word_store_type = std::array<word_type, N_STORE>

protected

Type used to store the address.

Definition at line 451 of file IPAddr.h.

◆ word_type

using swoc::IP6Addr::word_type = uint64_t

protected

Type used as a "word", the natural working unit of the address.

Definition at line 437 of file IPAddr.h.

Constructor & Destructor Documentation

◆ IP6Addr() [1/5]

swoc::IP6Addr::IP6Addr ( in6_addr const & addr )

inlineexplicit

Construct using IPv6 addr.

Definition at line 932 of file IPAddr.h.

◆ IP6Addr() [2/5]

swoc::IP6Addr::IP6Addr ( sockaddr_in6 const * addr )

inlineexplicit

Construct from sockaddr_in.

Definition at line 232 of file IPAddr.h.

◆ IP6Addr() [3/5]

swoc::IP6Addr::IP6Addr ( string_view const & text )

inline

Construct from text representation. If the text is invalid the result is any address.

See also: load

Definition at line 936 of file IPAddr.h.

◆ IP6Addr() [4/5]

swoc::IP6Addr::IP6Addr ( IP4Addr addr )

inlineexplicit

Construct mapped IPv4 address.

Parameters

addr	IPv4 address

Definition at line 942 of file IPAddr.h.

◆ IP6Addr() [5/5]

swoc::IP6Addr::IP6Addr	(	word_store_type::value_type	msw,
		word_store_type::value_type	lsw )

inlineprotected

Construct from two 64 bit values.

Parameters

msw	The most significant 64 bits, host order.
lsw	The least significant 64 bits, host order.

Definition at line 487 of file IPAddr.h.

Member Function Documentation

◆ as_span() [1/2]

template<typename T>

auto swoc::IP6Addr::as_span ( ) -> std::enable_if_t<swoc::meta::is_any_of_v<T, std::byte, uint8_t, uint16_t, uint32_t, uint64_t>, swoc::MemSpan<T>>

inline

Definition at line 408 of file IPAddr.h.

◆ as_span() [2/2]

template<typename T>

auto swoc::IP6Addr::as_span ( ) const -> std::enable_if_t<swoc::meta::is_any_of_v<typename std::remove_const_t<T>, std::byte, uint8_t, uint16_t, uint32_t, uint64_t>, swoc::MemSpan<T const>>

inline

Definition at line 414 of file IPAddr.h.

◆ clear()

auto swoc::IP6Addr::clear ( )

inline

Reset to default constructed state.

Returns: this

Definition at line 1009 of file IPAddr.h.

◆ cmp()

int swoc::IP6Addr::cmp ( self_type const & that ) const

Generic three value compare.

Definition at line 369 of file swoc_ip.cc.

◆ copy_to() [1/2]

sockaddr * swoc::IP6Addr::copy_to ( sockaddr * sa ) const

inline

Update socket address with this address.

Parameters

sa	Socket address.

Returns: @sin

sa is assumed to be large enough to hold an IPv6 address.

Definition at line 1096 of file IPAddr.h.

◆ copy_to() [2/2]

sockaddr_in6 * swoc::IP6Addr::copy_to ( sockaddr_in6 * sin6 ) const

Update socket address with this address.

Parameters

sin	IPv6 socket address.

Returns: @sin

Definition at line 361 of file swoc_ip.cc.

◆ family()

sa_family_t swoc::IP6Addr::family ( ) const

inlineconstexpr

Returns: The address family.

Definition at line 928 of file IPAddr.h.

◆ host_order() [1/2]

in6_addr swoc::IP6Addr::host_order ( ) const

inline

Return the address in host order.

Definition at line 981 of file IPAddr.h.

◆ host_order() [2/2]

in6_addr & swoc::IP6Addr::host_order ( in6_addr & dst ) const

inline

Copy the address in host order.

Parameters

dst	Destination for host order address.

Returns: dst

Definition at line 989 of file IPAddr.h.

◆ is_any()

bool swoc::IP6Addr::is_any ( ) const

inline

Returns: true if this is the "any" address, false if not.

Definition at line 961 of file IPAddr.h.

◆ is_link_local()

bool swoc::IP6Addr::is_link_local ( ) const

inline

Returns: true if this is a link local address, false if not.

Definition at line 971 of file IPAddr.h.

◆ is_loopback()

bool swoc::IP6Addr::is_loopback ( ) const

inline

Returns: true if this is a loopback address, false if not.

Definition at line 951 of file IPAddr.h.

◆ is_mapped_ip4()

bool swoc::IP6Addr::is_mapped_ip4 ( ) const

inline

Returns: true if this is an IPv4 addressed mapped to IPv6, false if not.

Definition at line 966 of file IPAddr.h.

◆ is_multicast()

bool swoc::IP6Addr::is_multicast ( ) const

inline

Returns: true if this is a multicast address, false if not.

Definition at line 956 of file IPAddr.h.

◆ is_private()

bool swoc::IP6Addr::is_private ( ) const

inline

Returns: true if the address is private.

Definition at line 976 of file IPAddr.h.

◆ load()

bool swoc::IP6Addr::load ( std::string_view const & str )

Parse a string for an IP address.

The address resuling from the parse is copied to this object if the conversion is successful, otherwise this object is invalidated.

Returns: true on success, false otherwise.

Definition at line 418 of file swoc_ip.cc.

◆ network_order() [1/2]

in6_addr swoc::IP6Addr::network_order ( ) const

inline

Return the address in network order.

Definition at line 997 of file IPAddr.h.

◆ network_order() [2/2]

in6_addr & swoc::IP6Addr::network_order ( in6_addr & dst ) const

inline

Copy the address in network order.

Parameters

dst	Destination for network order address.

Returns: dst

Definition at line 1003 of file IPAddr.h.

◆ operator&=() [1/2]

auto swoc::IP6Addr::operator&= ( IPMask const & that )

inline

Bitwise AND.

Parameters

that	Source mask.

Returns: this.

The bits in this are set to the bitwise AND of the corresponding bits in this and that.

Definition at line 1102 of file IPAddr.h.

◆ operator&=() [2/2]

IP6Addr & swoc::IP6Addr::operator&= ( self_type const & that )

Bitwise AND.

Parameters

that	Source address.

Returns: this.

The bits in this are set to the bitwise AND of the corresponding bits in this and that.

Definition at line 404 of file swoc_ip.cc.

◆ operator++()

auto swoc::IP6Addr::operator++ ( )

inline

Increment address.

Definition at line 1031 of file IPAddr.h.

◆ operator--()

auto swoc::IP6Addr::operator-- ( )

inline

Decrement address.

Definition at line 1039 of file IPAddr.h.

◆ operator<<=()

IP6Addr & swoc::IP6Addr::operator<<= ( unsigned n )

Left shift.

Parameters

n	Number of bits to shift left.

Returns: this.

Definition at line 373 of file swoc_ip.cc.

◆ operator=() [1/2]

auto swoc::IP6Addr::operator= ( in6_addr const & addr )

inline

Assign from IPv6 raw address.

Definition at line 1015 of file IPAddr.h.

◆ operator=() [2/2]

auto swoc::IP6Addr::operator= ( sockaddr_in6 const * addr )

inline

Set to the address in addr.

Definition at line 1021 of file IPAddr.h.

◆ operator>>=()

IP6Addr & swoc::IP6Addr::operator>>= ( unsigned n )

Right shift.

Parameters

n	Number of bits to shift right.

Returns: this.

Definition at line 389 of file swoc_ip.cc.

◆ operator[]()

uint8_t swoc::IP6Addr::operator[] ( int idx ) const

constexpr

Access a byte in the address.

Parameters

idx	Byte index.

Returns: The "text order" byte.

Definition at line 1215 of file IPAddr.h.

◆ operator|=() [1/2]

auto swoc::IP6Addr::operator|= ( IPMask const & that )

inline

Bitwise OR.

Parameters

that	Source mask.

Returns: this.

The bits in this are set to the bitwise OR of the corresponding bits in this and that.

Definition at line 1117 of file IPAddr.h.

◆ operator|=() [2/2]

IP6Addr & swoc::IP6Addr::operator|= ( self_type const & that )

Bitwise OR.

Parameters

that	Source address.

Returns: this.

The bits in this are set to the bitwise OR of the corresponding bits in this and that.

Definition at line 411 of file swoc_ip.cc.

◆ reorder() [1/3]

void swoc::IP6Addr::reorder	(	in6_addr &	dst,
		raw_type const &	src )

static

Convert between network and host ordering.

Parameters

dst	Destination for re-ordered address.
src	Original address.

Definition at line 502 of file swoc_ip.cc.

◆ reorder() [2/3]

void swoc::IP6Addr::reorder	(	raw_type &	dst,
		in6_addr const &	src )

static

Convert between network and host ordering.

Parameters

dst	Destination for re-ordered address.
src	Original address.

Definition at line 508 of file swoc_ip.cc.

◆ reorder() [3/3]

void swoc::IP6Addr::reorder	(	unsigned char	dst[WORD_SIZE],
		unsigned char const	src[WORD_SIZE] )

inlinestaticprotected

Convert between network and host order. The conversion is symmetric.

Parameters

dst	Output where reordered value is placed.
src	Input value to resorder.

Definition at line 1047 of file IPAddr.h.

Friends And Related Symbol Documentation

◆ IP6Range

friend class IP6Range

friend

Definition at line 203 of file IPAddr.h.

◆ IPMask

friend class IPMask

friend

Definition at line 204 of file IPAddr.h.

◆ operator!=

bool operator!=	(	self_type const &	lhs,
		self_type const &	rhs )

friend

Returns: true if lhs is not equal to rhs.

Definition at line 1062 of file IPAddr.h.

◆ operator&

IP6Addr operator&	(	IP6Addr const &	addr,
		IPMask const &	mask )

friend

Definition at line 1205 of file IPAddr.h.

◆ operator<

bool operator<	(	self_type const &	lhs,
		self_type const &	rhs )

friend

Returns: true if lhs is less than rhs.

Definition at line 1068 of file IPAddr.h.

◆ operator<=

bool operator<=	(	self_type const &	lhs,
		self_type const &	rhs )

friend

Returns: true if lhs is less than or equal to rhs.

Definition at line 1082 of file IPAddr.h.

◆ operator==

bool operator==	(	self_type const &	lhs,
		self_type const &	rhs )

friend

Returns: true if lhs is equal to rhs.

Definition at line 1055 of file IPAddr.h.

◆ operator|

IP6Addr operator\|	(	IP6Addr const &	addr,
		IPMask const &	mask )

friend

Definition at line 1210 of file IPAddr.h.

Member Data Documentation

◆ AF_value

sa_family_t swoc::IP6Addr::AF_value = AF_INET6

staticconstexpr

Address family type.

Definition at line 209 of file IPAddr.h.

◆ LSW

unsigned swoc::IP6Addr::LSW = 1

staticconstexprprotected

Least significant word index.

Definition at line 465 of file IPAddr.h.

◆ MAX

IP6Addr const swoc::IP6Addr::MAX {std::numeric_limits<uint64_t>::max(), std::numeric_limits<uint64_t>::max()}

static

Maximum value of an address.

Definition at line 223 of file IPAddr.h.

◆ MIN

IP6Addr const swoc::IP6Addr::MIN {0, 0}

static

Minimum value of an address.

Definition at line 221 of file IPAddr.h.

◆ MSW

unsigned swoc::IP6Addr::MSW = 0

staticconstexprprotected

Most significant word index.

Definition at line 466 of file IPAddr.h.

◆ N_QUADS

size_t swoc::IP6Addr::N_QUADS = SIZE / sizeof(quad_type)

staticconstexpr

of quads in an IPv6 address.

Definition at line 212 of file IPAddr.h.

◆ N_STORE

size_t swoc::IP6Addr::N_STORE = SIZE / WORD_SIZE

staticconstexprprotected

Number of words used for basic address storage.

Definition at line 448 of file IPAddr.h.

◆ QUAD_IDX

std::array<unsigned, N_QUADS> swoc::IP6Addr::QUAD_IDX = {3, 2, 1, 0, 7, 6, 5, 4}

staticconstexprprotected

Index of quads in _addr._quad. This converts from the position in the text format to the quads in the binary format.

Definition at line 470 of file IPAddr.h.

◆ QUAD_MASK

quad_type swoc::IP6Addr::QUAD_MASK = ~quad_type{0}

staticconstexprprotected

A bit mask of all 1 bits the size of a quad.

Definition at line 434 of file IPAddr.h.

◆ QUAD_WIDTH

size_t swoc::IP6Addr::QUAD_WIDTH = std::numeric_limits<uint8_t>::digits * sizeof(quad_type)

staticconstexpr

Number of bits per quad.

Definition at line 214 of file IPAddr.h.

◆ RAW_IDX

std::array<unsigned, SIZE> swoc::IP6Addr::RAW_IDX = {7, 6, 5, 4, 3, 2, 1, 0, 15, 14, 13, 12, 11, 10, 9, 8}

staticconstexprprotected

Index of bytes in _addr._raw This converts MSB (0) to LSB (15) indices to the bytes in the binary format.

Definition at line 474 of file IPAddr.h.

◆ SIZE

size_t swoc::IP6Addr::SIZE = WIDTH / std::numeric_limits<uint8_t>::digits

staticconstexpr

Size of address in bytes.

Definition at line 208 of file IPAddr.h.

◆ WIDTH

size_t swoc::IP6Addr::WIDTH = 128

staticconstexpr

Number of bits in the address.

Definition at line 207 of file IPAddr.h.

◆ WORD_MASK

word_type swoc::IP6Addr::WORD_MASK = ~word_type(0)

staticconstexprprotected

Mask the size of a word.

Definition at line 445 of file IPAddr.h.

◆ WORD_SIZE

size_t swoc::IP6Addr::WORD_SIZE = sizeof(word_type)

staticconstexprprotected

Definition at line 439 of file IPAddr.h.

◆ WORD_WIDTH

size_t swoc::IP6Addr::WORD_WIDTH = std::numeric_limits<uint8_t>::digits * WORD_SIZE

staticconstexprprotected

Number of bits per word.

Definition at line 442 of file IPAddr.h.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ quad_store_type

◆ quad_type

◆ raw_type

◆ word_store_type

◆ word_type

Constructor & Destructor Documentation

◆ IP6Addr() [1/5]

◆ IP6Addr() [2/5]

◆ IP6Addr() [3/5]

◆ IP6Addr() [4/5]

◆ IP6Addr() [5/5]

Member Function Documentation

◆ as_span() [1/2]

◆ as_span() [2/2]

◆ clear()

◆ cmp()

◆ copy_to() [1/2]

◆ copy_to() [2/2]

◆ family()

◆ host_order() [1/2]

◆ host_order() [2/2]

◆ is_any()

◆ is_link_local()

◆ is_loopback()

◆ is_mapped_ip4()

◆ is_multicast()

◆ is_private()

◆ load()

◆ network_order() [1/2]

◆ network_order() [2/2]

◆ operator&=() [1/2]

◆ operator&=() [2/2]

◆ operator++()

◆ operator--()

◆ operator<<=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator>>=()

◆ operator[]()

◆ operator|=() [1/2]

◆ operator|=() [2/2]

◆ reorder() [1/3]

◆ reorder() [2/3]

◆ reorder() [3/3]

Friends And Related Symbol Documentation

◆ IP6Range

◆ IPMask

◆ operator!=

◆ operator&

◆ operator<

◆ operator<=

◆ operator==

◆ operator|

Member Data Documentation

◆ AF_value

◆ LSW

◆ MAX

◆ MIN

◆ MSW

◆ N_QUADS

of quads in an IPv6 address.

◆ N_STORE

◆ QUAD_IDX

◆ QUAD_MASK

◆ QUAD_WIDTH

◆ RAW_IDX

◆ SIZE
