swoc::IP4Net Class Reference

An IPv4 network. More...

#include <IPRange.h>

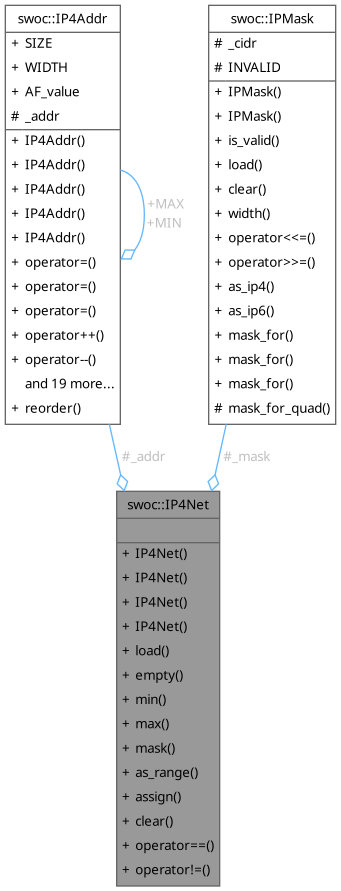

Collaboration diagram for swoc::IP4Net:

Public Member Functions
	IP4Net ()=default
	Construct invalid network.
	IP4Net (self_type const &that)=default
	Copy constructor.
	IP4Net (IP4Addr addr, IPMask mask)
	IP4Net (swoc::TextView text)
bool	load (swoc::TextView text)
bool	empty () const
IP4Addr	min () const
IP4Addr	max () const
IPMask const &	mask () const
IP4Range	as_range () const
self_type &	assign (IP4Addr const &addr, IPMask const &mask)
self_type &	clear ()
	Reset network to invalid state.
bool	operator== (self_type const &that) const
	Equality.
bool	operator!= (self_type const &that) const
	Inequality.

Protected Attributes
IP4Addr	_addr
	Network address (also lower_node).
IPMask	_mask
	Network mask.

Detailed Description

An IPv4 network.

Definition at line 718 of file IPRange.h.

Constructor & Destructor Documentation

IP4Net() [1/2]

swoc::IP4Net::IP4Net ( swoc::IP4Addr addr, swoc::IPMask mask )

inline

Construct from addr and mask.

Parameters

addr	An address in the network.
mask	The mask for the network.

The network is based on the mask, and the resulting network address is chosen such that the network will contain addr. For a given addr and mask there is only one network that satisifies these criteria.

Definition at line 2120 of file IPRange.h.

IP4Net() [2/2]

swoc::IP4Net::IP4Net ( swoc::TextView text )

inline

Definition at line 735 of file IPRange.h.

Member Function Documentation

as_range()

IP4Range swoc::IP4Net::as_range ( ) const

inline

Returns

A range that exactly covers the network.

Definition at line 2143 of file IPRange.h.

assign()

IP4Net::self_type & swoc::IP4Net::assign ( IP4Addr const & addr, IPMask const & mask )

inline

Assign an addr and mask to this.

Parameters

addr	Network addres.
mask	Network mask.

Returns

this.

Definition at line 2158 of file IPRange.h.

clear()

self_type & swoc::IP4Net::clear ( )

inline

Reset network to invalid state.

Definition at line 769 of file IPRange.h.

empty()

bool swoc::IP4Net::empty ( ) const

inline

Returns

true if the network contains no addresses (is invalid).

Definition at line 2128 of file IPRange.h.

load()

bool swoc::IP4Net::load

(

swoc::TextView

text

)

Parse network as text.

Parameters

text	String describing the network in CIDR format.

Returns

true if a valid string, false if not.

Definition at line 851 of file swoc_ip.cc.

mask()

IPMask const & swoc::IP4Net::mask ( ) const

inline

Returns

The mask for the network.

Definition at line 2123 of file IPRange.h.

max()

IP4Addr swoc::IP4Net::max ( ) const

inline

Returns

The largest address in the network.

Definition at line 2138 of file IPRange.h.

min()

IP4Addr swoc::IP4Net::min ( ) const

inline

Returns

Network address - smallest address in the network.

Definition at line 2133 of file IPRange.h.

operator!=()

bool swoc::IP4Net::operator!= ( self_type const & that ) const

inline

Inequality.

Definition at line 2153 of file IPRange.h.

operator==()

bool swoc::IP4Net::operator== ( self_type const & that ) const

inline

Equality.

Definition at line 2148 of file IPRange.h.

Member Data Documentation

_addr

IP4Addr swoc::IP4Net::_addr

protected

Network address (also lower_node).

Definition at line 781 of file IPRange.h.

_mask

IPMask swoc::IP4Net::_mask

protected

Network mask.

Definition at line 782 of file IPRange.h.

---

The documentation for this class was generated from the following files:

• IPRange.h
• swoc_ip.cc
