swoc::IP6Range::NetSource Class Reference

#include <IPRange.h>

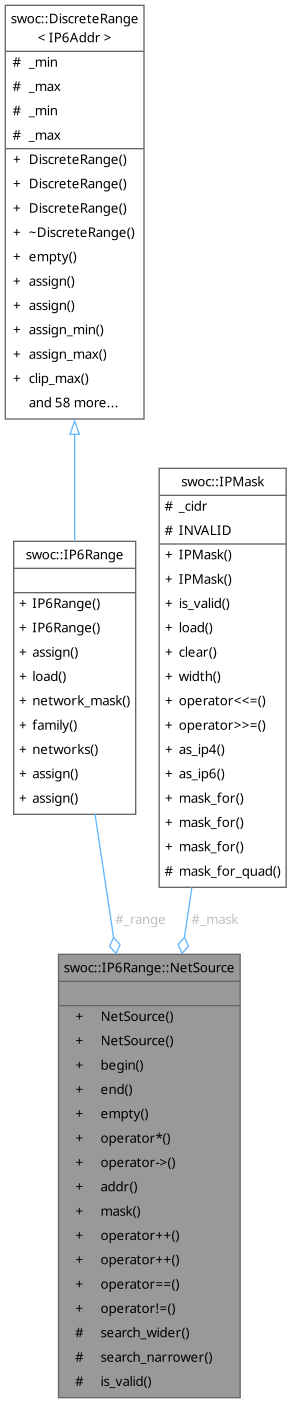

Collaboration diagram for swoc::IP6Range::NetSource:

Public Types
using	range_type = IP6Range
	Import base range type.
using	iterator = self_type
	This class acts as a container and an iterator.
using	const_iterator = iterator
	All iteration is constant so no distinction between iterators.

Public Member Functions
	NetSource (range_type const &range)
	Construct from range.
	NetSource (self_type const &that)=default
	Copy constructor.
iterator	begin () const
	First network.
iterator	end () const
	Past last network.
bool	empty () const
IP6Net	operator* () const
self_type *	operator-> ()
	Access this as if it were an IP6Net.
IP6Addr const &	addr () const
IPMask	mask () const
self_type &	operator++ ()
	Move to next network.
self_type	operator++ (int)
	Move to next network.
bool	operator== (self_type const &that) const
	Equality.
bool	operator!= (self_type const &that) const
	Inequality.

Protected Member Functions
void	search_wider ()
void	search_narrower ()
bool	is_valid (IPMask const &mask)

Protected Attributes
IP6Range	_range
	Remaining range.
IPMask	_mask {IP6Addr::WIDTH}
	Current CIDR value.

Detailed Description

Network generator class. This generates networks from a range and acts as both a forward iterator and a container.

See also

IP6Range::networks

Definition at line 261 of file IPRange.h.

Member Typedef Documentation

const_iterator

using swoc::IP6Range::NetSource::const_iterator = iterator

All iteration is constant so no distinction between iterators.

Definition at line 275 of file IPRange.h.

iterator

using swoc::IP6Range::NetSource::iterator = self_type

This class acts as a container and an iterator.

Definition at line 273 of file IPRange.h.

range_type

using swoc::IP6Range::NetSource::range_type = IP6Range

Import base range type.

Definition at line 264 of file IPRange.h.

Constructor & Destructor Documentation

NetSource()

swoc::IP6Range::NetSource::NetSource ( range_type const & range )

explicit

Construct from range.

Definition at line 1200 of file swoc_ip.cc.

Member Function Documentation

addr()

IP6Addr const & swoc::IP6Range::NetSource::addr ( ) const

inline

Returns

The current network address.

Definition at line 2390 of file IPRange.h.

begin()

auto swoc::IP6Range::NetSource::begin ( ) const

inline

First network.

Definition at line 2350 of file IPRange.h.

empty()

bool swoc::IP6Range::NetSource::empty ( ) const

inline

Returns

true if there are valid networks, false if not.

Definition at line 2360 of file IPRange.h.

end()

auto swoc::IP6Range::NetSource::end ( ) const

inline

Past last network.

Definition at line 2355 of file IPRange.h.

is_valid()

bool swoc::IP6Range::NetSource::is_valid ( IPMask const & mask )

inlineprotected

Definition at line 2375 of file IPRange.h.

mask()

IPMask swoc::IP6Range::NetSource::mask ( ) const

inline

Iterator support.

Returns

The current network mask.

Definition at line 2395 of file IPRange.h.

operator!=()

bool swoc::IP6Range::NetSource::operator!= ( self_type const & that ) const

inline

Inequality.

Definition at line 2385 of file IPRange.h.

operator*()

IP6Net swoc::IP6Range::NetSource::operator* ( ) const

inline

Returns

The current network.

Definition at line 2365 of file IPRange.h.

operator++()

auto swoc::IP6Range::NetSource::operator++

(

)

Move to next network.

Definition at line 1207 of file swoc_ip.cc.

operator->()

auto swoc::IP6Range::NetSource::operator-> ( )

inline

Access this as if it were an IP6Net.

Definition at line 2370 of file IPRange.h.

operator==()

bool swoc::IP6Range::NetSource::operator== ( self_type const & that ) const

inline

Equality.

Definition at line 2380 of file IPRange.h.

search_narrower()

void swoc::IP6Range::NetSource::search_narrower ( )

protected

Definition at line 1237 of file swoc_ip.cc.

search_wider()

void swoc::IP6Range::NetSource::search_wider ( )

protected

Definition at line 1224 of file swoc_ip.cc.

Member Data Documentation

_mask

IPMask swoc::IP6Range::NetSource::_mask {IP6Addr::WIDTH}

protected

Current CIDR value.

Definition at line 310 of file IPRange.h.

_range

IP6Range swoc::IP6Range::NetSource::_range

protected

Remaining range.

Definition at line 309 of file IPRange.h.

---

The documentation for this class was generated from the following files:

• IPRange.h
• swoc_ip.cc
