#include <IPAddr.h>

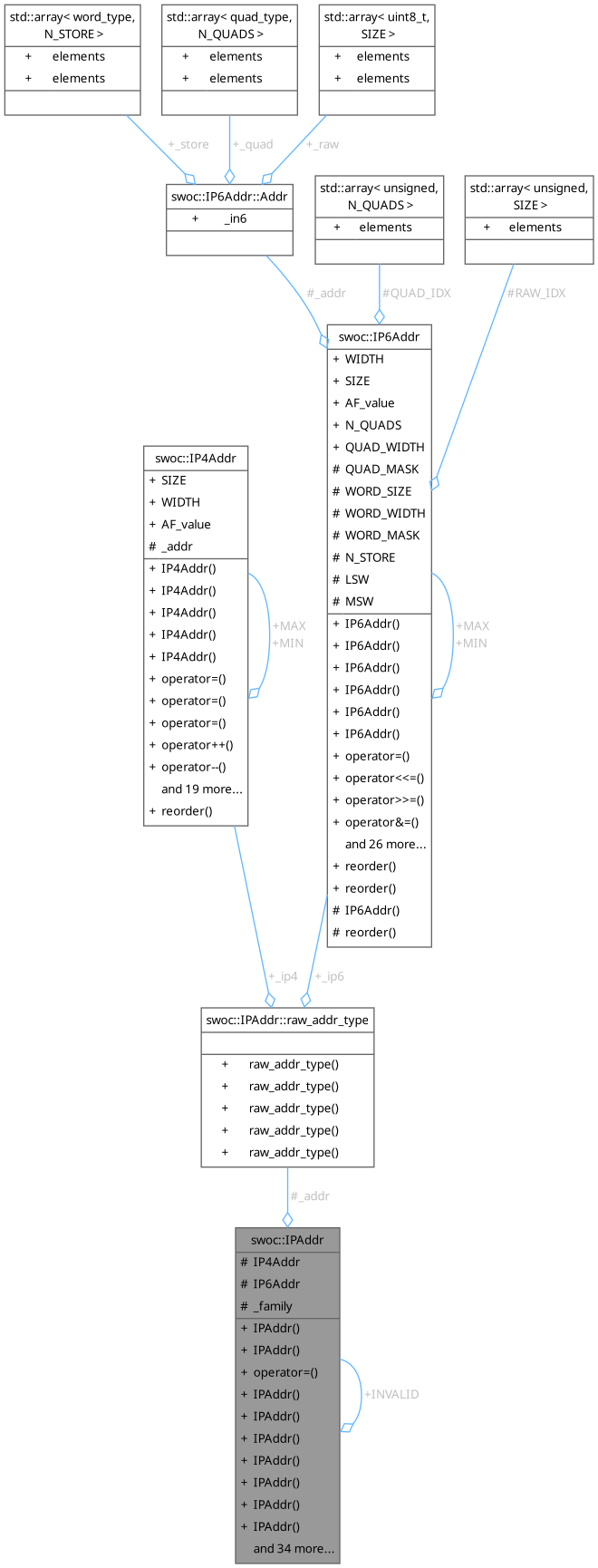

Collaboration diagram for swoc::IPAddr:

Classes
union	raw_addr_type
	Address data. More...

Public Member Functions
	IPAddr ()=default
	Default constructor - invalid result.

	IPAddr (self_type const &that)=default
	Copy constructor.

self_type &	operator= (self_type const &that)=default
	Copy assignment.

	IPAddr (in_addr_t addr)
	Construct using IPv4 addr.

	IPAddr (IP4Addr const &addr)
	Construct using an IPv4 addr.

	IPAddr (in6_addr const &addr)
	Construct using IPv6 addr.

	IPAddr (IP6Addr const &addr)
	construct using an IPv6 addr

	IPAddr (sockaddr const *addr)
	Construct from `sockaddr`.

	IPAddr (IPEndpoint const &addr)
	Construct from `IPEndpoint`.

	IPAddr (string_view const &text)

self_type &	assign (sockaddr const *addr)
	Set to the address in addr.

self_type &	assign (sockaddr_in const *addr)
	Set to the address in addr.

self_type &	assign (sockaddr_in6 const *addr)
	Set to the address in addr.

self_type &	assign (in_addr_t addr)
	Set to IPv4 addr.

self_type &	assign (in6_addr const &addr)
	Set to IPv6 addr.

self_type &	operator= (IPEndpoint const &ip)
	Assign from end point.

self_type &	operator= (in_addr_t ip)
	Assign from IPv4 raw address.

self_type &	operator= (in6_addr const &addr)
	Assign from IPv6 raw address.

bool	operator== (self_type const &that) const

bool	operator!= (self_type const &that) const

bool	operator< (self_type const &that) const

bool	operator> (self_type const &that) const

bool	operator<= (self_type const &that) const

bool	operator>= (self_type const &that) const

self_type &	operator= (sockaddr const *addr)
	Assign from `sockaddr`.

self_type &	operator&= (IPMask const &mask)

self_type &	operator\|= (IPMask const &mask)

sockaddr *	copy_to (sockaddr *sa) const

bool	load (string_view const &text)

int	cmp (self_type const &that) const
	Generic compare.

bool	is_same_family (self_type const &that)

sa_family_t	family () const

bool	is_ip4 () const
	Test for IPv4.

bool	is_ip6 () const
	Test for IPv6.

IP4Addr const &	ip4 () const

	operator IP4Addr () const

IP6Addr const &	ip6 () const

	operator IP6Addr () const

bool	is_valid () const
	Test for validity.

self_type &	invalidate ()
	Make invalid.

bool	is_loopback () const
	Test for loopback.

bool	is_multicast () const
	Test for multicast.

bool	is_link_local () const

bool	is_private () const
	Pre-constructed invalid instance.

Static Public Attributes
static self_type const	INVALID

Protected Attributes
friend	IP4Addr

friend	IP6Addr

union swoc::IPAddr::raw_addr_type	_addr

sa_family_t	_family {AF_UNSPEC}
	Protocol family.

Friends
class	IPRange

Detailed Description

An IPv4 or IPv6 address.

The family type is stored. For comparisons, invalid < IPv4 < IPv6. All invalid instances are equal.

Definition at line 501 of file IPAddr.h.

Constructor & Destructor Documentation

◆ IPAddr() [1/7]

swoc::IPAddr::IPAddr ( in_addr_t addr )

inlineexplicit

Construct using IPv4 addr.

Definition at line 1232 of file IPAddr.h.

◆ IPAddr() [2/7]

swoc::IPAddr::IPAddr ( IP4Addr const & addr )

inline

Construct using an IPv4 addr.

Definition at line 514 of file IPAddr.h.

◆ IPAddr() [3/7]

swoc::IPAddr::IPAddr ( in6_addr const & addr )

inlineexplicit

Construct using IPv6 addr.

Definition at line 1234 of file IPAddr.h.

◆ IPAddr() [4/7]

swoc::IPAddr::IPAddr ( IP6Addr const & addr )

inline

construct using an IPv6 addr

Definition at line 520 of file IPAddr.h.

◆ IPAddr() [5/7]

swoc::IPAddr::IPAddr ( sockaddr const * addr )

inlineexplicit

Construct from sockaddr.

Definition at line 1236 of file IPAddr.h.

◆ IPAddr() [6/7]

swoc::IPAddr::IPAddr ( IPEndpoint const & addr )

explicit

Construct from IPEndpoint.

Definition at line 513 of file swoc_ip.cc.

◆ IPAddr() [7/7]

swoc::IPAddr::IPAddr ( string_view const & text )

inlineexplicit

Construct from text representation. If the text is invalid the result is an invalid instance.

Definition at line 1240 of file IPAddr.h.

Member Function Documentation

◆ assign() [1/5]

IPAddr & swoc::IPAddr::assign ( in6_addr const & addr )

inline

Set to IPv6 addr.

Definition at line 1306 of file IPAddr.h.

◆ assign() [2/5]

IPAddr & swoc::IPAddr::assign ( in_addr_t addr )

inline

Set to IPv4 addr.

Definition at line 1299 of file IPAddr.h.

◆ assign() [3/5]

IPAddr & swoc::IPAddr::assign ( sockaddr const * addr )

Set to the address in addr.

Definition at line 562 of file swoc_ip.cc.

◆ assign() [4/5]

IPAddr & swoc::IPAddr::assign ( sockaddr_in const * addr )

inline

Set to the address in addr.

Definition at line 1313 of file IPAddr.h.

◆ assign() [5/5]

IPAddr & swoc::IPAddr::assign ( sockaddr_in6 const * addr )

inline

Set to the address in addr.

Definition at line 1324 of file IPAddr.h.

◆ cmp()

int swoc::IPAddr::cmp ( self_type const & that ) const

Generic compare.

Definition at line 602 of file swoc_ip.cc.

◆ copy_to()

sockaddr * swoc::IPAddr::copy_to ( sockaddr * sa ) const

Copy the address to a socket address.

Parameters

sa	Destination.

Returns: sa

Definition at line 523 of file swoc_ip.cc.

◆ family()

sa_family_t swoc::IPAddr::family ( ) const

inline

Get the address family.

Returns: The address family.

Definition at line 1264 of file IPAddr.h.

◆ invalidate()

IPAddr & swoc::IPAddr::invalidate ( )

inline

Make invalid.

Definition at line 1340 of file IPAddr.h.

◆ ip4()

IP4Addr const & swoc::IPAddr::ip4 ( ) const

inline

Returns: As IPv4 address - results are undefined if it is not actually IPv4.

Definition at line 1369 of file IPAddr.h.

◆ ip6()

IP6Addr const & swoc::IPAddr::ip6 ( ) const

inline

Returns: As IPv6 address - results are undefined if it is not actually IPv6.

Definition at line 1377 of file IPAddr.h.

◆ is_ip4()

bool swoc::IPAddr::is_ip4 ( ) const

inline

Test for IPv4.

Definition at line 1269 of file IPAddr.h.

◆ is_ip6()

bool swoc::IPAddr::is_ip6 ( ) const

inline

Test for IPv6.

Definition at line 1274 of file IPAddr.h.

◆ is_link_local()

bool swoc::IPAddr::is_link_local ( ) const

inline

Returns: true if this is a link local address, false if not.

Definition at line 1289 of file IPAddr.h.

◆ is_loopback()

bool swoc::IPAddr::is_loopback ( ) const

inline

Test for loopback.

Definition at line 1284 of file IPAddr.h.

◆ is_multicast()

bool swoc::IPAddr::is_multicast ( ) const

Test for multicast.

Definition at line 646 of file swoc_ip.cc.

◆ is_private()

bool swoc::IPAddr::is_private ( ) const

inline

Pre-constructed invalid instance.

Returns: true if this is a private address, false if not.

Definition at line 1294 of file IPAddr.h.

◆ is_same_family()

bool swoc::IPAddr::is_same_family ( self_type const & that )

inline

Test for same address family. return true if that is the same address family as this.

Definition at line 1279 of file IPAddr.h.

◆ is_valid()

bool swoc::IPAddr::is_valid ( ) const

inline

Test for validity.

Definition at line 1335 of file IPAddr.h.

◆ load()

bool swoc::IPAddr::load ( string_view const & text )

Parse a string and load the result in this.

Parameters

text	Text to parse.

Returns: true on success, false otherwise.

Definition at line 533 of file swoc_ip.cc.

◆ operator IP4Addr()

swoc::IPAddr::operator IP4Addr ( ) const

inlineexplicit

Returns: As IPv4 address - results are undefined if it is not actually IPv4.

Definition at line 1372 of file IPAddr.h.

◆ operator IP6Addr()

swoc::IPAddr::operator IP6Addr ( ) const

inlineexplicit

Returns: As IPv6 address - results are undefined if it is not actually IPv6.

Definition at line 1380 of file IPAddr.h.

◆ operator!=()

bool swoc::IPAddr::operator!= ( self_type const & that ) const

inline

Definition at line 1395 of file IPAddr.h.

◆ operator&=()

IPAddr::self_type & swoc::IPAddr::operator&= ( IPMask const & mask )

Definition at line 626 of file swoc_ip.cc.

◆ operator<()

bool swoc::IPAddr::operator< ( self_type const & that ) const

Definition at line 577 of file swoc_ip.cc.

◆ operator<=()

bool swoc::IPAddr::operator<= ( self_type const & that ) const

inline

Definition at line 1404 of file IPAddr.h.

◆ operator=() [1/4]

IPAddr & swoc::IPAddr::operator= ( in6_addr const & addr )

inline

Assign from IPv6 raw address.

Definition at line 1252 of file IPAddr.h.

◆ operator=() [2/4]

IPAddr & swoc::IPAddr::operator= ( in_addr_t ip )

inline

Assign from IPv4 raw address.

Definition at line 1245 of file IPAddr.h.

◆ operator=() [3/4]

IPAddr & swoc::IPAddr::operator= ( IPEndpoint const & ip )

Assign from end point.

Definition at line 518 of file swoc_ip.cc.

◆ operator=() [4/4]

IPAddr & swoc::IPAddr::operator= ( sockaddr const * addr )

inline

Assign from sockaddr.

Definition at line 1259 of file IPAddr.h.

◆ operator==()

bool swoc::IPAddr::operator== ( self_type const & that ) const

inline

Definition at line 1385 of file IPAddr.h.

◆ operator>()

bool swoc::IPAddr::operator> ( self_type const & that ) const

inline

Definition at line 1400 of file IPAddr.h.

◆ operator>=()

bool swoc::IPAddr::operator>= ( self_type const & that ) const

inline

Definition at line 1410 of file IPAddr.h.

◆ operator|=()

IPAddr::self_type & swoc::IPAddr::operator|= ( IPMask const & mask )

Definition at line 636 of file swoc_ip.cc.

Friends And Related Symbol Documentation

◆ IPRange

friend class IPRange

friend

Definition at line 502 of file IPAddr.h.

Member Data Documentation

◆ _family

sa_family_t swoc::IPAddr::_family {AF_UNSPEC}

protected

Protocol family.

Definition at line 659 of file IPAddr.h.

◆ INVALID

IPAddr const swoc::IPAddr::INVALID

static

Definition at line 637 of file IPAddr.h.

◆ IP4Addr

friend swoc::IPAddr::IP4Addr

protected

Definition at line 640 of file IPAddr.h.

◆ IP6Addr

friend swoc::IPAddr::IP6Addr

protected

Definition at line 641 of file IPAddr.h.

The documentation for this class was generated from the following files:
