swoc::IPSpace< PAYLOAD >::const_iterator Class Reference

#include <IPRange.h>

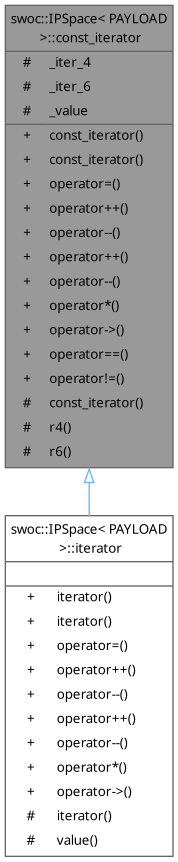

Inheritance diagram for swoc::IPSpace< PAYLOAD >::const_iterator:

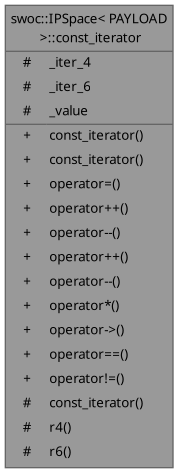

Collaboration diagram for swoc::IPSpace< PAYLOAD >::const_iterator:

Public Types
using	value_type = detail::ip_space_const_value_type<PAYLOAD>
using	iterator_category = std::bidirectional_iterator_tag
	Import for API compliance.
using	pointer = value_type const *
using	reference = value_type const &
using	difference_type = int

Public Member Functions
	const_iterator ()=default
	Default constructor.
	const_iterator (self_type const &that)=default
	Copy constructor.
self_type &	operator= (self_type const &that)
	Assignment.
self_type &	operator++ ()
self_type &	operator-- ()
self_type	operator++ (int)
self_type	operator-- (int)
reference	operator* () const
pointer	operator-> () const
bool	operator== (self_type const &that) const
	Equality.
bool	operator!= (self_type const &that) const
	Inequality.

Protected Member Functions
	const_iterator (typename IP4Space::const_iterator const &iter4, typename IP6Space::const_iterator const &iter6)
IP4Range const &	r4 ()
IP6Range const &	r6 ()

Protected Attributes
IP4Space::iterator	_iter_4
	IPv4 sub-space iterator.
IP6Space::iterator	_iter_6
value_type	_value
	Current value.

Friends
class	IPSpace

Detailed Description

template<typename PAYLOAD>
class swoc::IPSpace< PAYLOAD >::const_iterator

Constant iterator. The value type is a tuple of the IP address range and the PAYLOAD. Both are constant.

Definition at line 1246 of file IPRange.h.

Member Typedef Documentation

difference_type

template<typename PAYLOAD>

using swoc::IPSpace< PAYLOAD >::const_iterator::difference_type = int

Definition at line 1256 of file IPRange.h.

iterator_category

template<typename PAYLOAD>

using swoc::IPSpace< PAYLOAD >::const_iterator::iterator_category = std::bidirectional_iterator_tag

Import for API compliance.

Definition at line 1253 of file IPRange.h.

pointer

template<typename PAYLOAD>

using swoc::IPSpace< PAYLOAD >::const_iterator::pointer = value_type const *

Definition at line 1254 of file IPRange.h.

reference

template<typename PAYLOAD>

using swoc::IPSpace< PAYLOAD >::const_iterator::reference = value_type const &

Definition at line 1255 of file IPRange.h.

value_type

template<typename PAYLOAD>

using swoc::IPSpace< PAYLOAD >::const_iterator::value_type = detail::ip_space_const_value_type<PAYLOAD>

Definition at line 1251 of file IPRange.h.

Constructor & Destructor Documentation

const_iterator()

template<typename PAYLOAD>

swoc::IPSpace< PAYLOAD >::const_iterator::const_iterator ( typename IP4Space::const_iterator const & iter4, typename IP6Space::const_iterator const & iter6 )

protected

Internal constructor.

Parameters

iter4	Starting place for IPv4 subspace.
iter6	Starting place for IPv6 subspace.

In practice, at most one iterator should be "internal", the other should be the beginning or end.

Definition at line 1717 of file IPRange.h.

Member Function Documentation

operator!=()

template<typename PAYLOAD>

bool swoc::IPSpace< PAYLOAD >::const_iterator::operator!=

(

self_type const &

that

)

const

Inequality.

Definition at line 1821 of file IPRange.h.

operator*()

template<typename PAYLOAD>

auto swoc::IPSpace< PAYLOAD >::const_iterator::operator*

(

)

const

Dereference.

Returns

A reference to the referent.

Definition at line 1795 of file IPRange.h.

operator++() [1/2]

template<typename PAYLOAD>

auto swoc::IPSpace< PAYLOAD >::const_iterator::operator++

(

)

Pre-increment. Move to the next element in the list.

Returns

The iterator.

Definition at line 1739 of file IPRange.h.

operator++() [2/2]

template<typename PAYLOAD>

auto swoc::IPSpace< PAYLOAD >::const_iterator::operator++

(

int

)

Post-increment. Move to the next element in the list.

Returns

The iterator value before the increment.

Definition at line 1762 of file IPRange.h.

operator--() [1/2]

template<typename PAYLOAD>

auto swoc::IPSpace< PAYLOAD >::const_iterator::operator--

(

)

Pre-decrement. Move to the previous element in the list.

Returns

The iterator.

Definition at line 1770 of file IPRange.h.

operator--() [2/2]

template<typename PAYLOAD>

auto swoc::IPSpace< PAYLOAD >::const_iterator::operator--

(

int

)

Post-decrement. Move to the previous element in the list.

Returns

The iterator value before the decrement.

Definition at line 1787 of file IPRange.h.

operator->()

template<typename PAYLOAD>

auto swoc::IPSpace< PAYLOAD >::const_iterator::operator->

(

)

const

Dereference.

Returns

A pointer to the referent.

Definition at line 1801 of file IPRange.h.

operator=()

template<typename PAYLOAD>

auto swoc::IPSpace< PAYLOAD >::const_iterator::operator=

(

self_type const &

that

)

Assignment.

Definition at line 1730 of file IPRange.h.

operator==()

template<typename PAYLOAD>

bool swoc::IPSpace< PAYLOAD >::const_iterator::operator==

(

self_type const &

that

)

const

Equality.

Definition at line 1815 of file IPRange.h.

r4()

template<typename PAYLOAD>

IP4Range const & swoc::IPSpace< PAYLOAD >::const_iterator::r4 ( )

inlineprotected

Returns

Properly type cast range from iterator.

Definition at line 1326 of file IPRange.h.

r6()

template<typename PAYLOAD>

IP6Range const & swoc::IPSpace< PAYLOAD >::const_iterator::r6 ( )

inlineprotected

Returns

Properly type cast range from iterator.

Definition at line 1331 of file IPRange.h.

Friends And Related Symbol Documentation

IPSpace

template<typename PAYLOAD>

friend class IPSpace

friend

Definition at line 1248 of file IPRange.h.

Member Data Documentation

_iter_4

template<typename PAYLOAD>

IP4Space::iterator swoc::IPSpace< PAYLOAD >::const_iterator::_iter_4

protected

IPv4 sub-space iterator.

Definition at line 1307 of file IPRange.h.

_iter_6

template<typename PAYLOAD>

IP6Space::iterator swoc::IPSpace< PAYLOAD >::const_iterator::_iter_6

protected

IPv6 sub-space iterator.

Definition at line 1308 of file IPRange.h.

_value

template<typename PAYLOAD>

value_type swoc::IPSpace< PAYLOAD >::const_iterator::_value

protected

Current value.

Definition at line 1310 of file IPRange.h.

---

The documentation for this class was generated from the following file:

• IPRange.h
