#include <IPRange.h>

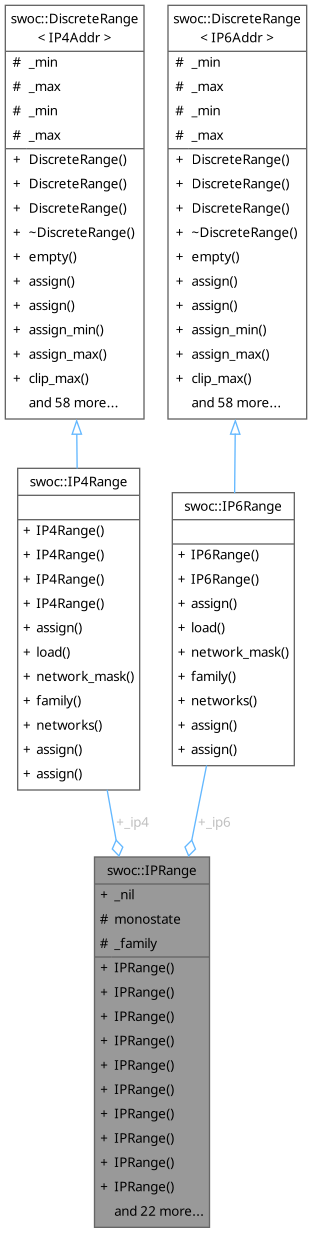

Collaboration diagram for swoc::IPRange:

Classes
class	NetSource

Public Member Functions
	IPRange ()=default
	Default constructor - construct invalid range.

	IPRange (IPAddr const &min, IPAddr const &max)

	IPRange (IP4Addr const &min, IP4Addr const &max)

	IPRange (IP6Addr const &min, IP6Addr const &max)

	IPRange (IPAddr const &addr)

	IPRange (IP4Addr addr)

	IPRange (IP6Addr const &addr)

	IPRange (IP4Range const &range)
	Construct from an IPv4 range.

	IPRange (IP6Range const &range)
	Construct from an IPv6 range.

	IPRange (IPRangeView const &view)
	Construct from view.

	IPRange (string_view const &text)

self_type &	assign (IP4Addr const &min, IP4Addr const &max)

self_type &	assign (IP6Addr const &min, IP6Addr const &max)

self_type &	operator= (IPRangeView const &rv)
	Assign from view.

bool	operator== (self_type const &that) const
	Equality.

bool	operator!= (self_type const &that) const
	Inequality.

bool	is_ip4 () const

bool	is_ip6 () const

bool	is (sa_family_t family) const

bool	load (std::string_view const &text)

bool	contains (IPAddr const &addr) const

bool	contains (IP6Addr const &addr) const

bool	contains (IP4Addr const &addr) const

IPAddr	min () const

IPAddr	max () const

bool	empty () const

self_type &	clear ()
	Make the range empty / invalid.

IP4Range const &	ip4 () const

IP6Range const &	ip6 () const

sa_family_t	family () const

IPMask	network_mask () const

NetSource	networks () const

Protected Attributes
union {

std::monostate _nil
	Make constructor easier to implement. More...

IP4Range _ip4
	IPv4 range. More...

IP6Range _ip6
	IPv6 range. More...

}	monostate

sa_family_t	_family {AF_UNSPEC}
	Family of _range.

Detailed Description

Range of IP addresses. Although this can hold IPv4 or IPv6, any specific instance is one or the other, this can never contain a range of different address families.

Definition at line 325 of file IPRange.h.

Constructor & Destructor Documentation

◆ IPRange() [1/10]

swoc::IPRange::IPRange	(	IPAddr const &	min,
		IPAddr const &	max )

Construct an inclusive range.

Parameters

min	Minimum range value.
max	Maximum range value.

Definition at line 1102 of file swoc_ip.cc.

◆ IPRange() [2/10]

swoc::IPRange::IPRange	(	IP4Addr const &	min,
		IP4Addr const &	max )

inline

Construct an inclusive range.

Parameters

min	Minimum range value.
max	Maximum range value.

Definition at line 1918 of file IPRange.h.

◆ IPRange() [3/10]

swoc::IPRange::IPRange	(	IP6Addr const &	min,
		IP6Addr const &	max )

inline

Construct an inclusive range.

Parameters

min	Minimum range value.
max	Maximum range value.

Definition at line 1922 of file IPRange.h.

◆ IPRange() [4/10]

swoc::IPRange::IPRange ( IPAddr const & addr )

inline

Construct a singleton range.

Parameters

addr	Address of range.

Definition at line 357 of file IPRange.h.

◆ IPRange() [5/10]

swoc::IPRange::IPRange ( IP4Addr addr )

inline

Construct a singleton range.

Parameters

addr	Address of range.

Definition at line 363 of file IPRange.h.

◆ IPRange() [6/10]

swoc::IPRange::IPRange ( IP6Addr const & addr )

inline

Construct a singleton range.

Parameters

addr	Address of range.

Definition at line 369 of file IPRange.h.

◆ IPRange() [7/10]

swoc::IPRange::IPRange ( IP4Range const & range )

inline

Construct from an IPv4 range.

Definition at line 1910 of file IPRange.h.

◆ IPRange() [8/10]

swoc::IPRange::IPRange ( IP6Range const & range )

inline

Construct from an IPv6 range.

Definition at line 1914 of file IPRange.h.

◆ IPRange() [9/10]

swoc::IPRange::IPRange ( IPRangeView const & view )

inline

Construct from view.

Definition at line 1930 of file IPRange.h.

◆ IPRange() [10/10]

swoc::IPRange::IPRange ( string_view const & text )

inline

Construct from a string format.

Parameters

text	Text form of range.

The string can be a single address, two addresses separated by a dash '-' or a CIDR network.

Definition at line 1926 of file IPRange.h.

Member Function Documentation

◆ assign() [1/2]

auto swoc::IPRange::assign	(	IP4Addr const &	min,
		IP4Addr const &	max )

inline

Update with an IPv4 range.

Parameters

min	Minimum value.
max	Maximum value.

Returns: this.

Definition at line 1939 of file IPRange.h.

◆ assign() [2/2]

auto swoc::IPRange::assign	(	IP6Addr const &	min,
		IP6Addr const &	max )

inline

Update with an IPv6 range.

Parameters

min	Minimum address.
max	Maximum address.

Returns: this

Definition at line 1946 of file IPRange.h.

◆ clear()

auto swoc::IPRange::clear ( )

inline

Make the range empty / invalid.

Definition at line 1963 of file IPRange.h.

◆ contains() [1/3]

bool swoc::IPRange::contains ( IP4Addr const & addr ) const

inline

Test if an address is in the range.

Parameters

addr	Address to test.

Returns: true if in this range, false if not.

Definition at line 2052 of file IPRange.h.

◆ contains() [2/3]

bool swoc::IPRange::contains ( IP6Addr const & addr ) const

inline

Test if an address is in the range.

Parameters

addr	Address to test.

Returns: true if in this range, false if not.

Definition at line 2048 of file IPRange.h.

◆ contains() [3/3]

bool swoc::IPRange::contains ( IPAddr const & addr ) const

inline

Test if an address is in the range.

Parameters

addr	Address to test.

Returns: true if in this range, false if not.

Definition at line 2036 of file IPRange.h.

◆ empty()

bool swoc::IPRange::empty ( ) const

Returns: true if there are no addresses in the range.

Definition at line 1152 of file swoc_ip.cc.

◆ family()

sa_family_t swoc::IPRange::family ( ) const

inline

Returns: The range family.

Definition at line 1993 of file IPRange.h.

◆ ip4()

IP4Range const & swoc::IPRange::ip4 ( ) const

inline

Returns: The IPv4 range.

Definition at line 1996 of file IPRange.h.

◆ ip6()

IP6Range const & swoc::IPRange::ip6 ( ) const

inline

Returns: The IPv6 range.

Definition at line 2000 of file IPRange.h.

◆ is()

bool swoc::IPRange::is ( sa_family_t family ) const

inline

Check if this range is the IP address family.

Parameters

family IP address family.

Returns: true if this is family, false if not.

Definition at line 1974 of file IPRange.h.

◆ is_ip4()

bool swoc::IPRange::is_ip4 ( ) const

inline

Returns: true if this is an IPv4 range, false if not.

Definition at line 1984 of file IPRange.h.

◆ is_ip6()

bool swoc::IPRange::is_ip6 ( ) const

inline

Returns: true if this is an IPv6 range, false if not.

Definition at line 1989 of file IPRange.h.

◆ load()

bool swoc::IPRange::load ( std::string_view const & text )

Load the range from text.

Parameters

text	Range specifier in text format.

Returns: true if text was successfully parsed, false if not.

A successful parse means this was loaded with the specified range. If not the range is marked as invalid.

Definition at line 1111 of file swoc_ip.cc.

◆ max()

IPAddr swoc::IPRange::max ( ) const

Returns: The maximum address in the range.

Definition at line 1139 of file swoc_ip.cc.

◆ min()

IPAddr swoc::IPRange::min ( ) const

Returns: The minimum address in the range.

Definition at line 1126 of file swoc_ip.cc.

◆ network_mask()

IPMask swoc::IPRange::network_mask ( ) const

Compute the mask for this as a network.

Returns: If this is a network, the mask for that network. Otherwise an invalid mask.

See also: IPMask::is_valid

Definition at line 1165 of file swoc_ip.cc.

◆ networks()

auto swoc::IPRange::networks ( ) const

inline

Generate a list of networks covering this range.

Returns: A network generator.

The returned object can be used as an iterator, or as a container to iterating over the unique minimal set of networks that cover this range.

void (IPRange const& range) {
  for ( auto const& net : range ) {
    net.addr(); // network address.
    net.mask(); // network mask;
  }
}

Definition at line 1969 of file IPRange.h.

◆ operator!=()

bool swoc::IPRange::operator!= ( self_type const & that ) const

inline

Inequality.

Definition at line 1979 of file IPRange.h.

◆ operator=()

auto swoc::IPRange::operator= ( IPRangeView const & rv )

inline

Assign from view.

Definition at line 1953 of file IPRange.h.

◆ operator==()

bool swoc::IPRange::operator== ( self_type const & that ) const

Equality.

Definition at line 1178 of file swoc_ip.cc.

Member Data Documentation

◆ _family

sa_family_t swoc::IPRange::_family {AF_UNSPEC}

protected

Family of _range.

Definition at line 523 of file IPRange.h.

◆ _ip4

IP4Range swoc::IPRange::_ip4

IPv4 range.

Definition at line 518 of file IPRange.h.

◆ _ip6

IP6Range swoc::IPRange::_ip6

IPv6 range.

Definition at line 519 of file IPRange.h.

◆ _nil

std::monostate swoc::IPRange::_nil

Make constructor easier to implement.

Definition at line 517 of file IPRange.h.

◆ [union]

union { ... } swoc::IPRange::monostate

Range container.

The documentation for this class was generated from the following files:
