swoc::IPSpace< PAYLOAD >::iterator Class Reference

#include <IPRange.h>

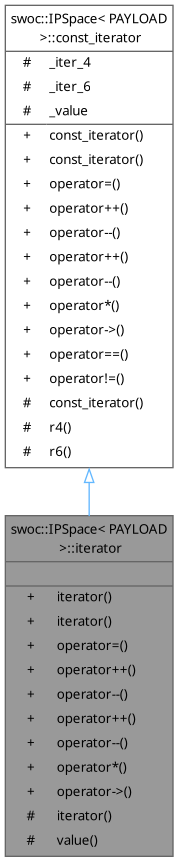

Inheritance diagram for swoc::IPSpace< PAYLOAD >::iterator:

Collaboration diagram for swoc::IPSpace< PAYLOAD >::iterator:

Public Types
using	value_type = detail::ip_space_value_type<PAYLOAD>
	Value type of iteration.
using	pointer = value_type *
using	reference = value_type &
Public Types inherited from swoc::IPSpace< PAYLOAD >::const_iterator
using	value_type = detail::ip_space_const_value_type<PAYLOAD>
using	iterator_category = std::bidirectional_iterator_tag
	Import for API compliance.
using	pointer = value_type const *
using	reference = value_type const &
using	difference_type = int

Public Member Functions
	iterator ()=default
	Default constructor.
	iterator (self_type const &that)=default
	Copy constructor.
self_type &	operator= (self_type const &that)
	Assignment.
self_type &	operator++ ()
self_type &	operator-- ()
self_type	operator++ (int)
self_type	operator-- (int)
reference	operator* () const
pointer	operator-> () const
Public Member Functions inherited from swoc::IPSpace< PAYLOAD >::const_iterator
	const_iterator ()=default
	Default constructor.
	const_iterator (self_type const &that)=default
	Copy constructor.
self_type &	operator= (self_type const &that)
	Assignment.
self_type &	operator++ ()
self_type &	operator-- ()
self_type	operator++ (int)
self_type	operator-- (int)
reference	operator* () const
pointer	operator-> () const
bool	operator== (self_type const &that) const
	Equality.
bool	operator!= (self_type const &that) const
	Inequality.

Protected Member Functions
	iterator (const_iterator const &that)
value_type &	value () const
Protected Member Functions inherited from swoc::IPSpace< PAYLOAD >::const_iterator
	const_iterator (typename IP4Space::const_iterator const &iter4, typename IP6Space::const_iterator const &iter6)
IP4Range const &	r4 ()
IP6Range const &	r6 ()

Friends
class	IPSpace

Additional Inherited Members
Protected Attributes inherited from swoc::IPSpace< PAYLOAD >::const_iterator
IP4Space::iterator	_iter_4
	IPv4 sub-space iterator.
IP6Space::iterator	_iter_6
value_type	_value
	Current value.

Detailed Description

template<typename PAYLOAD>
class swoc::IPSpace< PAYLOAD >::iterator

Iterator. The value type is a tuple of the IP address range and the PAYLOAD. The range is constant and the PAYLOAD is a reference. This can be used to update the PAYLOAD for this range.

Note

Range merges are not triggered by modifications of the PAYLOAD via an iterator.

Definition at line 1342 of file IPRange.h.

Member Typedef Documentation

pointer

template<typename PAYLOAD>

using swoc::IPSpace< PAYLOAD >::iterator::pointer = value_type *

Definition at line 1357 of file IPRange.h.

reference

template<typename PAYLOAD>

using swoc::IPSpace< PAYLOAD >::iterator::reference = value_type &

Definition at line 1358 of file IPRange.h.

value_type

template<typename PAYLOAD>

using swoc::IPSpace< PAYLOAD >::iterator::value_type = detail::ip_space_value_type<PAYLOAD>

Value type of iteration.

Definition at line 1356 of file IPRange.h.

Constructor & Destructor Documentation

iterator()

template<typename PAYLOAD>

swoc::IPSpace< PAYLOAD >::iterator::iterator ( const_iterator const & that )

inlineprotected

Inherit supertype constructors. Protected constructor to convert const to non-const.

Note

This makes for much less code duplication in iterator relevant methods.

Definition at line 1352 of file IPRange.h.

Member Function Documentation

operator*()

template<typename PAYLOAD>

auto swoc::IPSpace< PAYLOAD >::iterator::operator*

(

)

const

Dereference.

Returns

A reference to the referent.

Definition at line 1846 of file IPRange.h.

operator++() [1/2]

template<typename PAYLOAD>

auto swoc::IPSpace< PAYLOAD >::iterator::operator++

(

)

Pre-increment. Move to the next element in the list.

Returns

The iterator.

Definition at line 1852 of file IPRange.h.

operator++() [2/2]

template<typename PAYLOAD>

auto swoc::IPSpace< PAYLOAD >::iterator::operator++

(

int

)

Post-increment. Move to the next element in the list.

Returns

The iterator value before the increment.

Definition at line 1859 of file IPRange.h.

operator--() [1/2]

template<typename PAYLOAD>

auto swoc::IPSpace< PAYLOAD >::iterator::operator--

(

)

Pre-decrement. Move to the previous element in the list.

Returns

The iterator.

Definition at line 1867 of file IPRange.h.

operator--() [2/2]

template<typename PAYLOAD>

auto swoc::IPSpace< PAYLOAD >::iterator::operator--

(

int

)

Post-decrement. Move to the previous element in the list.

Returns

The iterator value before the decrement.

Definition at line 1874 of file IPRange.h.

operator->()

template<typename PAYLOAD>

auto swoc::IPSpace< PAYLOAD >::iterator::operator->

(

)

const

Dereference.

Returns

A pointer to the referent.

Definition at line 1840 of file IPRange.h.

operator=()

template<typename PAYLOAD>

auto swoc::IPSpace< PAYLOAD >::iterator::operator=

(

self_type const &

that

)

Assignment.

Definition at line 1827 of file IPRange.h.

value()

template<typename PAYLOAD>

auto swoc::IPSpace< PAYLOAD >::iterator::value ( ) const

protected

Definition at line 1834 of file IPRange.h.

Friends And Related Symbol Documentation

IPSpace

template<typename PAYLOAD>

friend class IPSpace

friend

Definition at line 1346 of file IPRange.h.

---

The documentation for this class was generated from the following file:

• IPRange.h
