swoc::IPRangeView Class Reference

#include <IPRange.h>

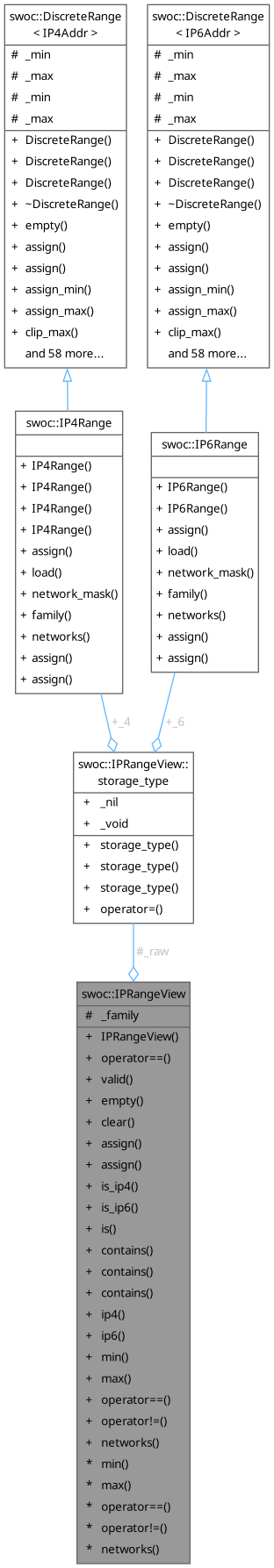

Collaboration diagram for swoc::IPRangeView:

Public Member Functions
	IPRangeView ()=default
	Default constructor - invalid view.
bool	operator== (IPRange const &r) const
	Compare to a range.
bool	valid () const
bool	empty () const
self_type &	clear ()
	Reset to invalid view.
self_type &	assign (IP4Range const &r)
	Update the view.
self_type &	assign (IP6Range const &r)
	Update the view.
bool	is_ip4 () const
bool	is_ip6 () const
bool	is (sa_family_t family) const
bool	contains (IPAddr const &addr) const
bool	contains (IP6Addr const &addr) const
bool	contains (IP4Addr const &addr) const
IP4Range const &	ip4 () const
IP6Range const &	ip6 () const
IPAddr	min () const
IPAddr	max () const
bool	operator== (self_type const &that) const
	Equality.
bool	operator!= (self_type const &that) const
	Inequality.
IPRange::NetSource	networks () const

Protected Attributes
storage_type	_raw = {std::monostate()}
	Storage for the view pointer.
sa_family_t	_family = AF_UNSPEC
	Range address family.

Detailed Description

View of a range.

The point of this is IPRange is really a union on top of IP4Range and IP6Range therefore using it requires copying. A view enable using an IPv4 or IPv6 range as a generic range without the copy. This is useful in situations where performance is critical.

Used primarily for iterator implementation where the ranges are stored in family specific ranges in the container. The iterator can use this to provide access as an IPRange without a copying every iteration.

Note

An earlier implementation used references and updated those to achieve this same effect but that appeared to confusion the optimizer and odd effects would happen at higher optimization levels (in particular, iterators would appear to not actually increment even thought the increment code was invoked).

Definition at line 604 of file IPRange.h.

Member Function Documentation

assign() [1/2]

auto swoc::IPRangeView::assign ( IP4Range const & r )

inline

Update the view.

Definition at line 2072 of file IPRange.h.

assign() [2/2]

auto swoc::IPRangeView::assign ( IP6Range const & r )

inline

Update the view.

Definition at line 2079 of file IPRange.h.

clear()

auto swoc::IPRangeView::clear ( )

inline

Reset to invalid view.

Definition at line 2005 of file IPRange.h.

contains() [1/3]

bool swoc::IPRangeView::contains ( IP4Addr const & addr ) const

inline

Test if an address is in the range.

Parameters

addr	Address to test.

Returns

true if in this range, false if not.

Definition at line 2114 of file IPRange.h.

contains() [2/3]

bool swoc::IPRangeView::contains ( IP6Addr const & addr ) const

inline

Test if an address is in the range.

Parameters

addr	Address to test.

Returns

true if in this range, false if not.

Definition at line 2110 of file IPRange.h.

contains() [3/3]

bool swoc::IPRangeView::contains ( IPAddr const & addr ) const

inline

Test if an address is in the range.

Parameters

addr	Address to test.

Returns

true if in this range, false if not.

Definition at line 2100 of file IPRange.h.

empty()

bool swoc::IPRangeView::empty ( ) const

inline

Definition at line 2011 of file IPRange.h.

ip4()

IP4Range const & swoc::IPRangeView::ip4 ( ) const

inline

Returns

Reference to the viewed IPv4 range.

Definition at line 2057 of file IPRange.h.

ip6()

IP6Range const & swoc::IPRangeView::ip6 ( ) const

inline

Returns

Reference to the viewd IPv6 range.

Definition at line 2062 of file IPRange.h.

is()

bool swoc::IPRangeView::is ( sa_family_t family ) const

inline

Check if this range is the IP address family.

Parameters

family

IP address family.

Returns

true if this is family, false if not.

Definition at line 2032 of file IPRange.h.

is_ip4()

bool swoc::IPRangeView::is_ip4 ( ) const

inline

Returns

true if this is an IPv4 range.

Definition at line 2022 of file IPRange.h.

is_ip6()

bool swoc::IPRangeView::is_ip6 ( ) const

inline

Returns

true if this is an IPv6 range.

Definition at line 2027 of file IPRange.h.

max()

IPAddr swoc::IPRangeView::max ( ) const

inline

Returns

The maximum value in the range.

Definition at line 2096 of file IPRange.h.

min()

IPAddr swoc::IPRangeView::min ( ) const

inline

Forwarding methods.

Returns

The minimum address in the range.

Definition at line 2091 of file IPRange.h.

networks()

IPRange::NetSource swoc::IPRangeView::networks ( ) const

inline

Generate a list of networks covering this range.

Returns

A network generator.

See also

IPRange::networks

Definition at line 706 of file IPRange.h.

operator!=()

bool swoc::IPRangeView::operator!= ( IPRangeView::self_type const & that ) const

inline

Inequality.

Definition at line 2086 of file IPRange.h.

operator==() [1/2]

bool swoc::IPRangeView::operator==

(

IPRange const &

r

)

const

Compare to a range.

Definition at line 1244 of file swoc_ip.cc.

operator==() [2/2]

bool swoc::IPRangeView::operator==

(

IPRangeView::self_type const &

that

)

const

Equality.

Definition at line 1257 of file swoc_ip.cc.

valid()

bool swoc::IPRangeView::valid ( ) const

inline

Returns

true if there is no valid view to a range.

Definition at line 2067 of file IPRange.h.

Member Data Documentation

_family

sa_family_t swoc::IPRangeView::_family = AF_UNSPEC

protected

Range address family.

Definition at line 714 of file IPRange.h.

_raw

storage_type swoc::IPRangeView::_raw = {std::monostate()}

protected

Storage for the view pointer.

Definition at line 713 of file IPRange.h.

---

The documentation for this class was generated from the following files:

• IPRange.h
• swoc_ip.cc
