swoc::IPRange::NetSource Class Reference

#include <IPRange.h>

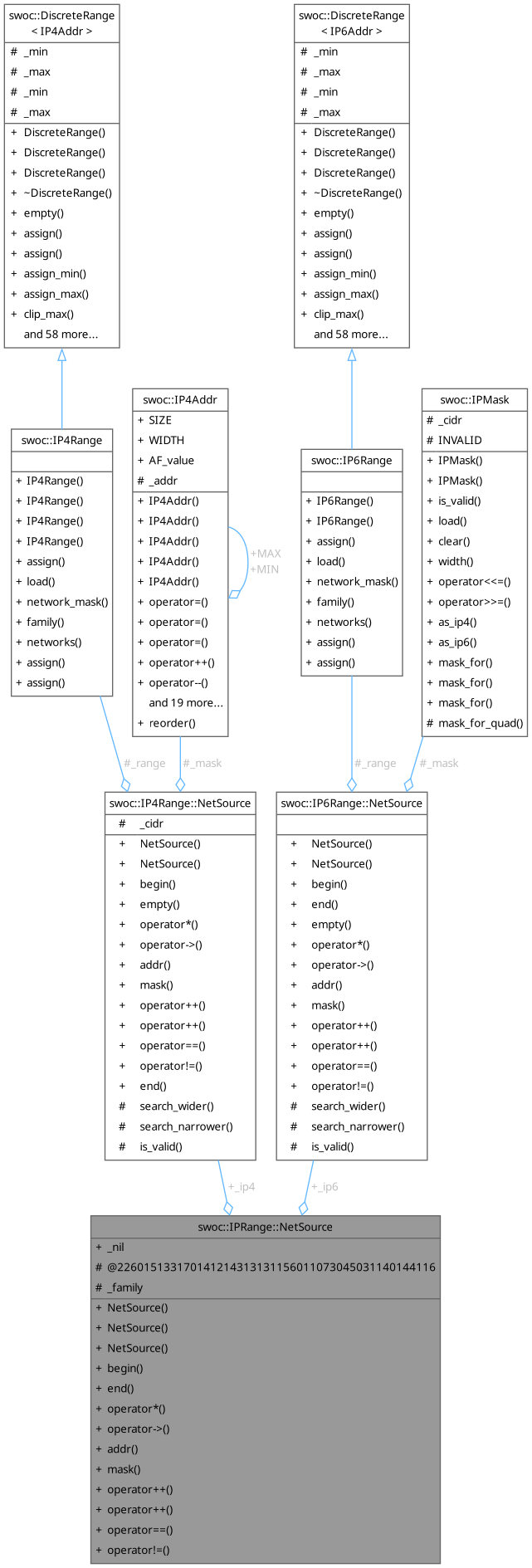

Collaboration diagram for swoc::IPRange::NetSource:

Public Types
using	range_type = IPRange
	Import base range type.
using	iterator = self_type
	This class acts as a container and an iterator.
using	const_iterator = iterator
	All iteration is constant so no distinction between iterators.

Public Member Functions
	NetSource (range_type const &range)
	Construct from range.
	NetSource (IPRangeView const &rv)
	Construct from view.
	NetSource (self_type const &that)=default
	Copy constructor.
iterator	begin () const
	First network.
iterator	end () const
	Past last network.
IPNet	operator* () const
self_type *	operator-> ()
	Access this as if it were an IP6Net.
IPAddr	addr () const
IPMask	mask () const
self_type &	operator++ ()
	Move to next network.
self_type	operator++ (int)
	Move to next network.
bool	operator== (self_type const &that) const
	Equality.
bool	operator!= (self_type const &that) const
	Inequality.

Protected Attributes
union {
std::monostate   _nil
	Default value, no addresses. More...
IP4Range::NetSource   _ip4
	IPv4 addresses. More...
IP6Range::NetSource   _ip6
	IPv6 addresses. More...
};
sa_family_t	_family = AF_UNSPEC
	Mark for union content.

Detailed Description

Network generator class. This generates networks from a range and acts as both a forward iterator and a container.

See also

IPRange::networks

Definition at line 531 of file IPRange.h.

Member Typedef Documentation

const_iterator

using swoc::IPRange::NetSource::const_iterator = iterator

All iteration is constant so no distinction between iterators.

Definition at line 548 of file IPRange.h.

iterator

using swoc::IPRange::NetSource::iterator = self_type

This class acts as a container and an iterator.

Definition at line 546 of file IPRange.h.

range_type

using swoc::IPRange::NetSource::range_type = IPRange

Import base range type.

Definition at line 534 of file IPRange.h.

Constructor & Destructor Documentation

NetSource() [1/2]

swoc::IPRange::NetSource::NetSource ( range_type const & range )

inlineexplicit

Construct from range.

Definition at line 2399 of file IPRange.h.

NetSource() [2/2]

swoc::IPRange::NetSource::NetSource ( IPRangeView const & rv )

inlineexplicit

Construct from view.

Definition at line 2409 of file IPRange.h.

Member Function Documentation

addr()

IPAddr swoc::IPRange::NetSource::addr ( ) const

inline

Iterator support.

Returns

The current network address.

Definition at line 2430 of file IPRange.h.

begin()

auto swoc::IPRange::NetSource::begin ( ) const

inline

First network.

Definition at line 2420 of file IPRange.h.

end()

auto swoc::IPRange::NetSource::end ( ) const

inline

Past last network.

Definition at line 2425 of file IPRange.h.

mask()

IPMask swoc::IPRange::NetSource::mask ( ) const

inline

Iterator support.

Returns

The current network mask.

Definition at line 2440 of file IPRange.h.

operator!=()

bool swoc::IPRange::NetSource::operator!= ( self_type const & that ) const

inline

Inequality.

Definition at line 2485 of file IPRange.h.

operator*()

IPNet swoc::IPRange::NetSource::operator* ( ) const

inline

Returns

The current network.

Definition at line 2450 of file IPRange.h.

operator++()

auto swoc::IPRange::NetSource::operator++ ( )

inline

Move to next network.

Definition at line 2455 of file IPRange.h.

operator->()

auto swoc::IPRange::NetSource::operator-> ( )

inline

Access this as if it were an IP6Net.

Definition at line 2465 of file IPRange.h.

operator==()

bool swoc::IPRange::NetSource::operator== ( self_type const & that ) const

inline

Equality.

Definition at line 2470 of file IPRange.h.

Member Data Documentation

_family

sa_family_t swoc::IPRange::NetSource::_family = AF_UNSPEC

protected

Mark for union content.

Definition at line 586 of file IPRange.h.

_ip4

IP4Range::NetSource swoc::IPRange::NetSource::_ip4

IPv4 addresses.

Definition at line 582 of file IPRange.h.

_ip6

IP6Range::NetSource swoc::IPRange::NetSource::_ip6

IPv6 addresses.

Definition at line 583 of file IPRange.h.

_nil

std::monostate swoc::IPRange::NetSource::_nil

Default value, no addresses.

Definition at line 581 of file IPRange.h.

---

The documentation for this class was generated from the following file:

• IPRange.h
